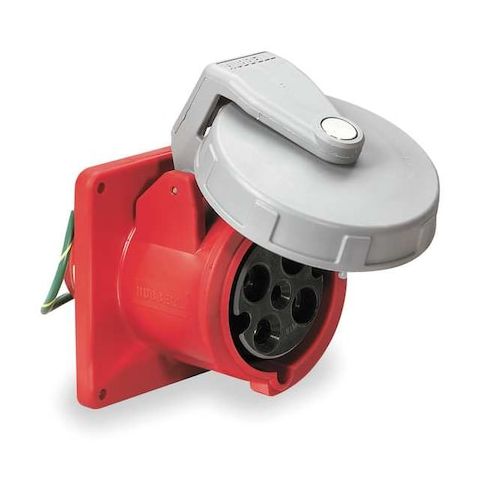

Watertight Pin & Sleeve Receptacle, 60 A, 480V AC, Three Phase, 4 Pole, IEC Grounding, Red, NEMA 4X MPN:HBL460R7W
Free Shipping
In Stock
The HUBBELL IEC Pin and Sleeve Receptacle is a rugged and reliable solution for demanding environments where protection against water ingress is required. Rated for 60 amps and 480V AC in three-phase systems, this receptacle offers resistance to impact, moisture, and high temperatures. Its flanged design with screw terminal wire connections makes it suitable for wire sizes from 8 AWG to 2 AWG. Ideal for use in harsh industrial settings, such as manufacturing facilities, construction sites, and outdoor equipment, this receptacle provides a secure and watertight connection for power distribution. Its compact design and durable construction make it a valuable addition to any electrical system.
Top product features:
- Rated for 60A at 480V AC in three-phase systems
- Constructed with a Zytel 101 nylon body and housing for resistance to impact, moisture, and high temperatures
- Accepts wire sizes from 8 AWG to 2 AWG for flexible cord configuration
Top product applications:
- Industrial Control Panels
- Outdoor Lighting and Signage
- Marine and Offshore Applications
The HUBBELL IEC Pin and Sleeve Receptacle is rated for 60 amps and 480V AC in three-phase systems. Constructed with a Zytel 101 nylon body and housing, this receptacle offers resistance to impact, moisture, and high temperatures. It features a flanged design with screw terminal wire connections suitable for wire sizes from 8 AWG to 2 AWG. The unit meets IP67 and NEMA 4X enclosure ratings, making it suitable for demanding environments where protection against water ingress is required.
Key Features of the HUBBELL IEC Pin & Sleeve Receptacle:
- Current/Voltage Rating: Rated for 60A at 480V AC (three-phase)
- Body/Housing Material: Zytel 101 nylon
- Ingress Protection: IP67 rating
- NEMA Enclosure Type 4X
- Cord Size Compatibility: Accepts wire sizes from 8 AWG to 2 AWG
- Operating Temperature Range: -40°C to +75°C
- Number of Poles/Wires: Four poles, five wires configuration
- Connection Orientation: Straight
- screw terminal connection type
- Flange/Gasket Materials: Flanged design with neoprene gasket for watertight sealing
- Resistance Properties: Constructed from materials rated as impact resistant, moisture resistant, watertight per applicable standards
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.40
- Package Width: 5.50
- Package Height: 4.90
- Package Weight: 2.55
