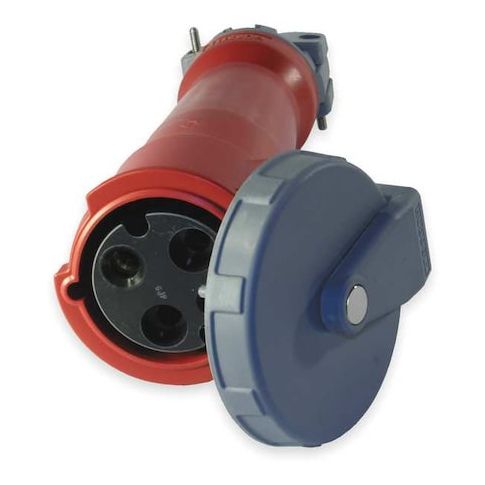

Watertight Pin & Sleeve Connector, 100 A, 480V AC, Single Phase, 2 Pole, IEC Grounding, Red, NEMA 4X MPN:HBL3100C7W
Free Shipping
In Stock
The HUBBELL IEC Pin and Sleeve Connector is a rugged and reliable electrical connector designed for use in demanding industrial settings, rated for 100A and 480V AC. Its Zytel 801 nylon body and insulated non-metallic housing provide excellent environmental protection, meeting IP68/IP69K ingress protection ratings. Suitable for single-phase, 3-wire grounding applications, this connector features pressure terminal screws for secure connectivity and is compatible with the HBL Heavy Duty series. Its color-coded housings, gasketed cover, and shrouded contacts ensure safe and efficient power transmission in harsh environments, making it ideal for use in manufacturing, construction, and other heavy-duty industries.
Top product features:
- Accommodates conductor range from #3 AWG to #1/0 AWG
- Features color-coded housings, gasketed cover, shrouded contacts, spring-loaded cap, and insulated body
- Meets IP68/IP69K ingress protection ratings per IEC standards
Top product applications:
- Heavy industrial applications requiring high current and voltage ratings
- High-power equipment installations in harsh environments
- Outdoor electrical connections in wet or corrosive conditions
The HUBBELL IEC Pin and Sleeve Connector is an electrical connector rated for use in industrial settings with specified current and voltage ratings. Rated for 100A and 480V AC, this single-phase, 3-wire grounding device features a rugged Zytel 801 nylon body with an insulated non-metallic housing. It is compatible with the HBL Heavy Duty series and incorporates pressure terminal screws for secure connectivity. The connector meets CSA and UL standards according to IEC 60309-1/2 requirements.
Key Features of the HUBBELL IEC Pin and Sleeve Connector:
- Current/Voltage Rating: Rated for 100 A at 480V AC, suitable for demanding power applications.
- Body Material: Zytel 801 nylon with PBT housing grade
- Environmental Protection: Meets IP68/IP69K ingress protection ratings per IEC standards
- moisture resistant per IEC standards.
- Cable Accommodation: Accommodates conductor range from #3 AWG to #1/0 AWG
- compatible with cable diameters from 1.065 in to 1.94 in.
- Connection Type: Uses screw terminals (pressure terminal screws)
- Features: Features color-coded housings, gasketed cover, shrouded contacts, spring-loaded cap, and insulated body
- Temperature Range: Rated operating temperature range: -40°C (without impact) to +75°C
- Standards Compliance: Certified under CSA LR280C
- UL Classified to IEC 60309-1 & -2
- UL E146033 listed device.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.10
- Package Width: 6.20
- Package Height: 5.70
- Package Weight: 4.55
