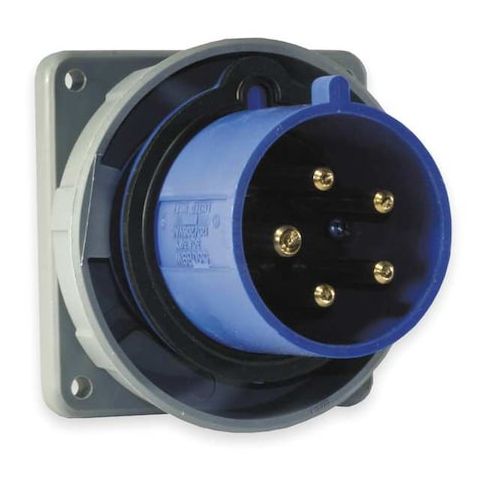

Watertight Pin & Sleeve Inlet, 60 A, 120/208V AC, Three Phase, 4 Pole, IEC Grounding, Blue MPN:HBL560B9W
Free Shipping
In Stock
The HUBBELL IEC Pin and Sleeve Inlet is a reliable and durable electrical solution for industrial settings. Rated for 60 amps at 120/208V AC, it's suitable for high-capacity applications such as manufacturing, construction, and heavy-duty equipment. Its IP67-rated construction ensures moisture resistance, while its Zytel 101 nylon body and flange provide a secure and long-lasting seal. This inlet is designed for use with wire sizes #8 AWG to #2 AWG and operates between -40°C to +75°C. Its CSA certification and UL listing ensure compliance with industry standards, making it an ideal choice for demanding environments.
Top product features:
- Current Rating: Rated for 60 amps at 120/208V AC, suitable for high-capacity applications.
- IP67-rated Construction: Gasketed sealing ring and raised collar around each phase pin provide moisture resistance.
- Accepts wire sizes from #8 AWG to #2 AWG via pressure terminal screws.
Top product applications:
- Industrial Control Panels
- Heavy Duty Machinery
- Outdoor Electrical Enclosures
The HUBBELL IEC Pin and Sleeve Inlet, 60A, 120/208V is an IP67-rated electrical inlet suitable for use in industrial settings. This device is constructed with a Zytel 101 nylon body and flange.
Key Features of the HUBBELL IEC Pin & Sleeve Inlet:
- Current Rating: Rated for 60 amps at 120/208V AC, suitable for high-capacity applications.
- IP67-rated Construction: Gasketed sealing ring and raised collar around each phase pin
- rated IP67 moisture resistance.
- Material Composition: Body, flange, and housing made from Zytel 101 nylon
- gasket material is neoprene
- retainer constructed from high-impact thermoset.
- Cord Compatibility: Accepts wire sizes from #8 AWG to #2 AWG via pressure terminal screws.
- Temperature Range: Operates between -40°C to +75°C without impact degradation.
- Flammability & UV Resistance: UL 94 V-0 flammability rating
- all materials are UV stabilized for durability in various environments.
- Standards Compliance: CSA Certified LR280C
- UL Listed E146032
- conforms to IEC 60309-1/-2 requirements.
- Design Attributes: Shrouded design with insulated body, grounded per IEC style, switch rated, no cap or cover included.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.40
- Package Width: 5.60
- Package Height: 4.90
- Package Weight: 1.90
