Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:HBL8200HG
Free Shipping
In Stock

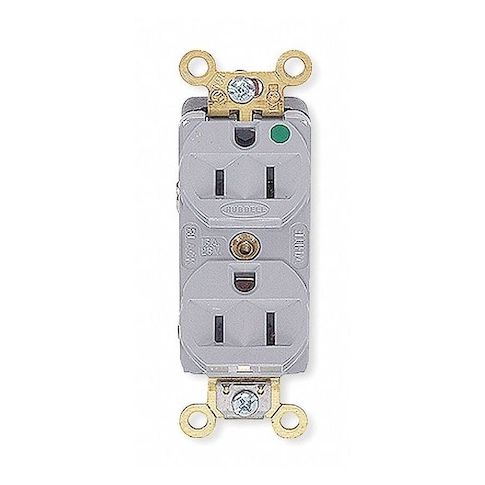

The HUBBELL 15A Duplex Receptacle 125VAC 5-15R GY is a high-quality, hospital-grade receptacle designed for commercial and healthcare environments. Its compact design and triple wipe brass contacts provide reliable electrical connections, making it suitable for high-abuse areas. The device supports both back and side wiring methods, accommodating a range of wire gauges. Its flush mount design and included mounting hardware make it easy to install. Perfect for use in hospitals, clinics, and other healthcare facilities, this receptacle also meets federal specifications and is UL Listed for added safety and reliability.
Top product features:
- Supports both back and side wiring methods using screw terminals, accommodating #14–#10 AWG copper wire.
- Features a slender, compact design with a thermoplastic housing and triple wipe brass contacts to provide reliable electrical connections.
- Has a dielectric strength that withstands a minimum of 2,000V.
Top product applications:
- Commercial Environments
- Healthcare Facilities
- Office Buildings
The HUBBELL 15A Duplex Receptacle 125VAC 5-15R GY is a hospital grade, traditional duplex receptacle suitable for use in commercial and healthcare environments. It features a slender, compact design with a thermoplastic housing and triple wipe brass contacts to provide reliable electrical connections. The device supports both back and side wiring methods using screw terminals, accommodating #14–#10 AWG copper wire.
Key Features of the HUBBELL 15A Duplex Receptacle:
- Amperage/Voltage: Rated for 15 A at 125 V AC
- NEMA Configuration: 5-15R (2-pole, 3-wire grounded)
- Device Grade: Hospital Grade Fed. Spec., suitable for high-abuse areas
- Material: Thermoplastic housing with brass contacts
- Wiring Method: Back and side wired screw terminals
- accepts #14–#10 AWG copper wire
- Mounting Type: Flush mount with included mounting hardware
- Dielectric Strength: Withstands minimum of 2,000V
- Flammability Rating: UL 94 V-0 rated material
- Operating Temperature Range: -40°C to +75°C (without impact)
- Certifications/Standards: CSA Certified C22.2 No.42 File 285
- Federal Specification W-C-596
- NEMA WD-6
- UL Listed to UL498 File E2186
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.40
- Package Width: 1.90
- Package Height: 1.60
- Package Weight: 0.28
