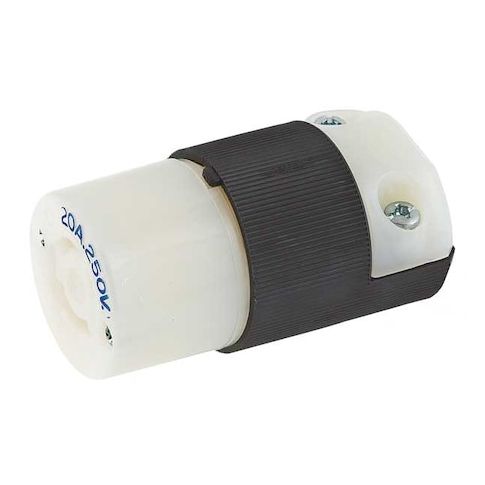

Locking Connector, L2-20R, 20 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Black, White MPN:HBL7101C
Free Shipping
In Stock
The HUBBELL 20A Twist-Lock Connector is a reliable and secure locking connector designed for industrial and commercial electrical applications. Its two-pole, two-wire configuration and insulated nylon body ensure safe and efficient operation at 250VAC and 20 amps. Suitable for use in a variety of settings, including factories, offices, and construction sites, this connector is ideal for applications where a secure and reliable connection is crucial. Its screw terminals and dielectric strength make it a versatile and durable option, meeting HB flammability rating and Federal Specification W-C-596 standards, ensuring compliance and safety in a range of electrical installations.
Top product features:
- Rated for 20 A and 250V AC single-phase operation
- Features a two-pole, two-wire configuration
- Accepts cable diameters from 0.230 in to 0.720 in with wire size #18 AWG to #10 AWG stranded copper only
Top product applications:
- Industrial electrical applications
- Commercial electrical applications
- Heavy-duty equipment installations
The HUBBELL 20A Twist-Lock Connector (L2-20R) is a locking connector suitable for industrial and commercial electrical applications. It features a two-pole, two-wire configuration rated for 250VAC and 20 amps, with an insulated nylon body.
Key Features of the HUBBELL 20A Twist-Lock Connector:
- Amperage/Voltage Rating: Rated for 20 A and 250V AC single-phase operation
- NEMA Configuration: L2-20R locking design intended to maintain connection
- Body Material: Natural white nylon housing
- Cable Range: Accepts cable diameters from 0.230 in to 0.720 in
- wire size #18 AWG to #10 AWG stranded copper only
- Dielectric Strength: Withstands minimum of 2,000V as per standards
- Temperature Range: Operates continuously at up to 75°C and down to -40°C (without impact)
- Screw Terminals: Standard wiring style using screw terminals identified according to UL498 requirements
- Flame Resistance & Standards Compliance: Meets HB flammability rating per UL94/CSA
- conforms to Federal Specification W-C-596
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.70
- Package Width: 1.60
- Package Height: 3.10
- Package Weight: 0.15
