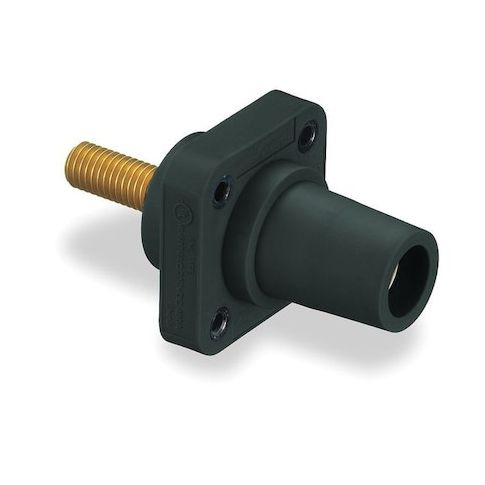

Receptacle, 3R, 4X, 12K, Stud, Black, Series: 16 MPN:HBLFRSBK

• The HUBBELL Series 16 Panel Mount Receptacle is a single pole, female device rated for operation up to 400A and rated for 600V AC or 250V DC. It features a stud-type, threaded terminal connection and is intended for indoor installations where additional protection may be required. The receptacle is constructed with a thermoplastic elastomer housing and brass contacts.





  Key Features of the HUBBELL Series 16 Panel Mount Receptacle:





  • Amperage Rating: Rated up to 400A (AC or DC)


  • Voltage Rating: Rated up to 600V AC or 250V DC


  • Connection Type: Threaded stud terminal with straight orientation
  • panel mount style


  • Compatible Wire Size: Accepts wire sizes from #4 AWG to 4/0 AWG


  • Contact Material: Brass contacts


  • Housing Material: Thermoplastic elastomer housing


  • NEMA Enclosure Ratings: Meets NEMA Types 3R, 4X, and 12K requirements for specific protected locations


  • Standards Compliance: Listed under ANSI/NFPA 70 (NEC), UL/cUL standards, UL94 HB flammability rating
