Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount MPN:IG5362
Free Shipping
In Stock
The HUBBELL 20A Duplex Receptacle is a specification-grade duplex receptacle designed for commercial and industrial applications. Its isolated ground system provides a dedicated insulated ground path, ensuring safe and reliable operation. Suitable for indoor dry locations, this receptacle features back and side wiring methods with screw terminals, accommodating #12–#10 AWG stranded or solid copper wire. Ideal for use in offices, warehouses, and manufacturing facilities, this receptacle meets or exceeds various standards, including UL Listed, CSA Certified, and NEMA WD-6 compliant. Its rugged construction and reliable performance make it a trusted choice for demanding environments.
Top product features:
- Isolated Ground: Dedicated insulated ground path with green grounding screw
- Back and Side Wired: Supports both back and side wiring methods with screw terminals
- Dielectric Strength: Withstands minimum of 2,000V
Top product applications:
- Commercial Buildings
- Industrial Settings
- Home Renovations

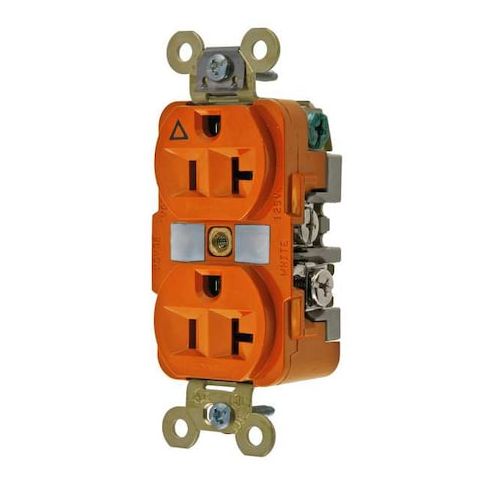

The HUBBELL 20A Duplex Receptacle 125VAC 5-20R OR is a Specification grade duplex receptacle rated for commercial and industrial applications. It features an isolated ground system, which separates the ground contacts from the mounting strap. The device supports both back and side wiring methods with screw terminals and accommodates #12–#10 AWG stranded or solid copper wire. Its orange nylon housing is suitable for use in indoor dry locations.
Key Features of the HUBBELL 20A Duplex Receptacle:
- Amperage/Voltage: Rated for 20A, 125V AC
- NEMA Configuration: 5-20R (2-pole, 3-wire grounding)
- Isolated Ground: Dedicated insulated ground path with green grounding screw
- Wiring Method: Back and side wired screw terminals
- Material Construction: Nylon housing
- nickel-plated brass contacts
- reinforced PET base
- Certification & Standards: UL Listed to UL498 File E2186
- CSA Certified C22.2 No.42 File 285
- Federal Specification W-C-596
- NEMA WD-6 compliant
- Operating Temperature Range: -40°C to +75°C (without impact)
- Dielectric Strength: Withstands minimum of 2,000V
- Face Style: Finder Groove face with triangle marking indicating isolated ground
- Mounting Type: Flush mount with included hardware
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.70
- Package Width: 1.50
- Package Height: 4.10
- Package Weight: 0.25
