Locking Receptacle, L6-20R, 20 A, 250V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals MPN:HBL2320

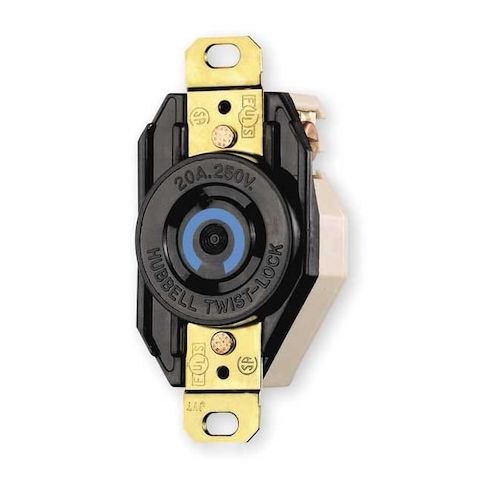

• The HUBBELL 20A Twist-Lock Receptacle L6-20R is a locking receptacle suitable for use in industrial environments where locking electrical connections are specified. This flush-mount, single-gang device includes a twist-lock mechanism that secures the connection and accommodates 2-pole, 3-wire configurations at 250V AC. It is constructed with a nylon face and thermoplastic elastomer housing

• intended for indoor dry locations.




  Key Features of the HUBBELL 20A Twist-Lock Receptacle L6-20R:





  • Amperage/Voltage: Rated for 20 A at 250V AC


  • NEMA Configuration: L6-20R (2-pole, 3-wire)


  • Material Construction: Nylon face
  • thermoplastic elastomer housing


  • Contact/Spring Material: Brass contacts and springs


  • Wire Accommodation: Accepts #16 AWG – #8 AWG solid or stranded copper wire via screw terminals


  • Mounting Type: Flush mount with included screw mounting hardware


  • Operating Temperature Range: -40°C to +75°C (without impact)


  • Flammability Rating: UL94 V-2 or better per CSA standards


  • Dielectric Strength: Rated to withstand minimum of 2,000V
  • listed as current interrupting at full rated current
