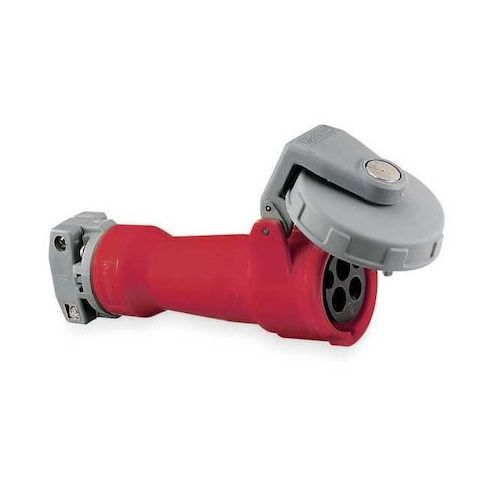

Watertight Pin & Sleeve Connector, 30 A, 480V AC, Three Phase, 3 Pole, IEC Grounding, Red, NEMA 4X MPN:HBL430C7W

• The HUBBELL IEC Pin and Sleeve Connector is a rated IP68/IP69K for ingress protection connector suitable for industrial applications, rated for 30A and 480V AC in three-phase systems. This connector features a rugged, insulated non-metallic housing made from Zytel 801 nylon and PBT, housing material is Zytel 801 nylon and PBT. It supports wire sizes from 12 AWG to 8 AWG with screw terminal connections and includes a spring-loaded cap.





  Key Features of the HUBBELL IEC Pin and Sleeve Connector:





  • Current/Voltage Rating: Rated for 30 amps at 480V AC (three-phase)


  • Housing Material: Constructed from Zytel 801 nylon with PBT housing grade


  • Ingress Protection: IP68/IP69K rating
  • NEMA Type 4X enclosure


  • Cable Compatibility: Accepts cable diameters from 0.375 in to 1.25 in


  • Operating Temperature Range: -40°C to +75°C


  • Number of Poles/Wires: Three poles, four wires
  • grounded per IEC style


  • Cord Grip & Cap: External cord grip with self-closing gasketed cover (spring-loaded cap)


  • Color Coding: Red color-coded housing for voltage identification


  • Flammability Rating: UL94 V-0


  • Standards Compliance: CSA Certified LR280C
  • UL Classified to IEC 60309-1/-2
  • UL E146033 listed
