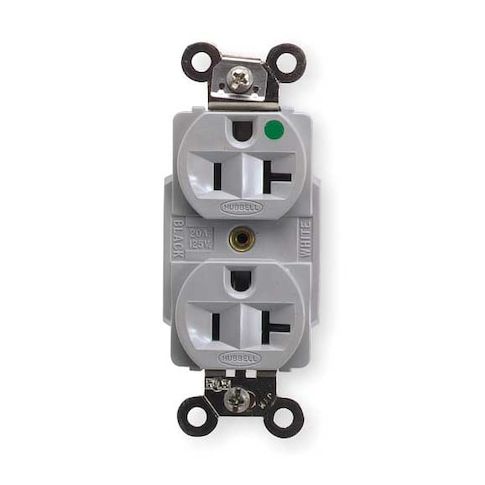

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:HBL8300GY
Free Shipping
In Stock
The HUBBELL 20A Duplex Receptacle is a hospital-grade electrical outlet designed for use in specified areas, meeting UL requirements for hospital-grade devices. This receptacle features a deep body with impact-resistant thermoplastic polyester and nickel-plated brass bypass contacts, providing a secure and reliable connection. With four-point grounding and back and side wired screw terminals, it offers flexibility in flush mount applications. Suitable for use in hospitals, healthcare facilities, and commercial settings, this receptacle provides a safe and efficient solution for electrical power distribution. Its rugged design and wide operating temperature range make it an ideal choice for high-traffic areas.
Top product features:
- Hospital Grade: Meets UL requirements for hospital grade devices intended for use in designated areas.
- Four-point grounding system.
- Impact resistant thermoplastic polyester face with deep body design.
Top product applications:
- Hospital grade electrical receptacle
- Flush mount applications
- Areas with high operating temperatures
The HUBBELL 20A Duplex Receptacle 125VAC 5-20R GY is a Hospital grade electrical receptacle rated for use in specified applications. This duplex outlet features a deep body with an impact resistant thermoplastic polyester face and is rated for 20 amps at 125 volts AC. It includes both back and side wired screw terminals to accommodate #12–#10 AWG copper wire, supporting flexible installation options in flush mount applications.
Key Features of the HUBBELL 20A Duplex Receptacle:
- Hospital Grade: Meets UL requirements for hospital grade devices
- intended for use in designated areas.
- Contact Design: Nickel-plated brass bypass contacts
- Grounding System: Four-point grounding
- Impact Resistance: Deep face design constructed with impact resistant thermoplastic polyester
- Circuit ID Marking Area: Circuit ID marking area
- Wiring Options: Back and side wired screw terminals accept #12–#10 AWG stranded or solid copper wire
- NEMA Configuration: NEMA 5-20R, single phase, two-pole, three-wire grounded configuration
- Operating Temperature Range: Operating temperature range: -40°F to 167°F (-40°C to +75°C)
- Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186 standards.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.60
- Package Width: 1.80
- Package Height: 4.30
- Package Weight: 0.30
