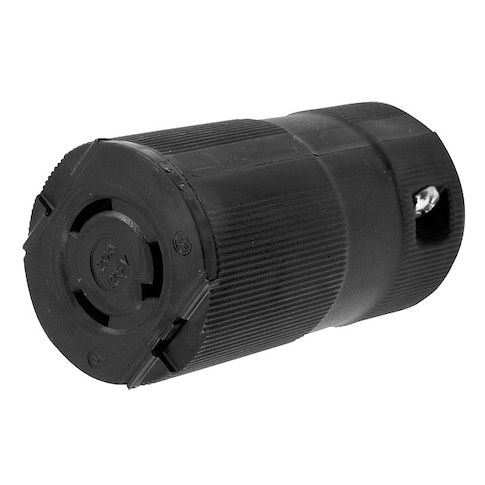

Locking Connector, L5-20R, 20 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black MPN:HBL2313VBK

• The HUBBELL 20A Midget Locking Connector (L5-20R) is an industrial locking connector intended for electrical connections in indoor, dry locations. It features a nylon body that is impact and crush resistant, with clamp-type terminals designed to bundle conductor strands when tightened to provide reliable contact. The device accommodates stranded copper wire sizes from #14 AWG to #8 AWG and supports cable diameters between 0.325" and 0.720".





  Key Features of the HUBBELL 20A Midget Locking Connector:





  • Amperage/Voltage Rating: Rated for 20 A at 125V AC, single phase.


  • NEMA Configuration: L5-20R, grounded with two poles and three wires.


  • Body Material: Nylon housing


  • Cable Range: Accepts cables with outside diameters from 0.325" to 0.720".


  • Contact Material: Brass contacts for electrical conductivity.


  • Wire Connection Type: Screw terminals accommodate #14 AWG–#8 AWG stranded copper wire only.


  • Insulation: Thermoplastic insulated body enhances protection against accidental contact.


  • Cord Grip: intended to help maintain wire position at the terminal


  • Temperature Rating: Operates continuously up to 75°C
  • minimum -40°C without impact (-25°C with impact).


  • Flame Resistance & Standards Compliance: Meets UL 94 HB flammability rating
  • certified under CSA C22.2 No.42, Fed.Spec W-C-596, UL 498 standards.


  • IP Rating: IP20 – suitable for indoor use in dry conditions unless additional protection is provided.
