Locking Receptacle, L21-30R, 30 A, 120/208V AC, Three Phase, 4 Pole, Flush Mount, Screw Terminals MPN:HBL2810
Free Shipping
In Stock

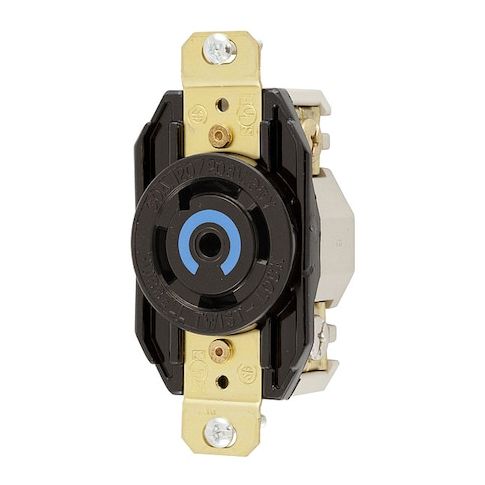

The HUBBELL 30A Twist-Lock Receptacle L21-30R is a reliable and secure industrial locking receptacle designed for use in three-phase systems. Its twist-lock mechanism reduces the likelihood of accidental disconnection, ensuring a safe and stable power supply. Suitable for a wide range of applications, including manufacturing, construction, and heavy industry, this receptacle accommodates 4 poles and 5 wires, rated for 120/208V AC operation. Its durable construction and corrosion-resistant materials make it an ideal choice for harsh environments. By providing a secure and reliable power supply, this receptacle helps to minimize downtime and increase productivity.
Top product features:
- The device features a twist-lock mechanism intended to reduce the likelihood of accidental disconnection.
- The receptacle accepts #16 AWG – #8 AWG solid or stranded copper wire via screw terminals.
- The device is constructed with a nylon housing with impact-resistant design and brass contacts and mounting system.
Top product applications:
- Industrial settings with three-phase systems
- Commercial construction projects that require locking receptacles
- Heavy-duty equipment installations in environments with high vibration or impact
The HUBBELL 30A Twist-Lock Receptacle L21-30R is an industrial locking receptacle rated for use in three-phase systems. It features a twist-lock mechanism intended to reduce the likelihood of accidental disconnection and accommodates 4 poles and 5 wires, rated for 120/208V AC operation. The device is constructed with a nylon face and includes both back and side wiring options to help maintain terminal connection integrity.
Key Features of the HUBBELL 30A Twist-Lock Receptacle L21-30R:
- Amperage/Voltage: Rated for 30 A, 120/208V AC, three-phase applications
- NEMA Configuration: L21-30R (4-pole, 5-wire)
- Material Construction: Nylon housing with impact-resistant design
- brass contacts and mounting system
- Wire Accommodation: Accepts #16 AWG – #8 AWG solid or stranded copper wire via screw terminals
- Mounting Type: Flush mount
- includes mounting hardware
- Operating Temperature Range: -40°C to +75°C (without impact)
- NEMA Enclosure/IP Rating: NEMA Type 1, IP20 (for indoor dry locations unless otherwise protected)
- Standards Compliance: Certified to CSA C22.2 No.42, UL 498 listed, Federal Specification W-C-596
- Special Features: Design incorporates materials selected for corrosion resistance
- color-coded face by voltage for proper device identification
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.80
- Package Width: 2.00
- Package Height: 4.10
- Package Weight: 0.30
