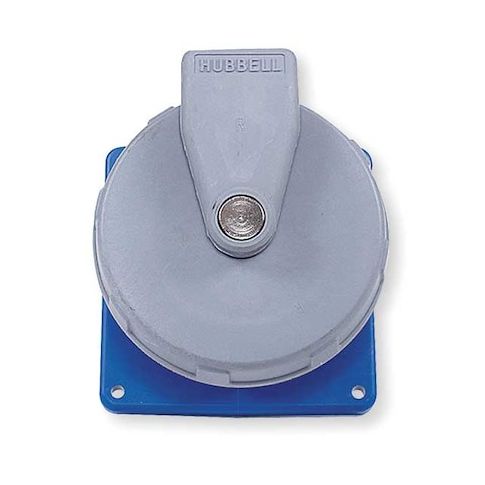

Watertight Pin & Sleeve Receptacle, 60 A, 120/208V AC, Single Phase, 4 Pole, IEC Grounding, Blue MPN:HBL560R9W
Free Shipping
In Stock
The HUBBELL IEC Pin and Sleeve Receptacle is a rugged, watertight electrical device designed for industrial applications. Rated for 60A and 120/208V AC, this receptacle features a straight connection orientation with screw terminals, supporting wire sizes from 8 to 1/0 AWG. Its Zytel 101 nylon housing and flange provide impact- and moisture-resistant housing suitable for harsh environments. Ideal for use in manufacturing, construction, and outdoor settings, this receptacle meets IP67 and NEMA 4X enclosure ratings, ensuring reliable performance in extreme conditions. Its compact design and durable construction make it an excellent choice for applications requiring high electrical capacity and water resistance.
Top product features:
- Watertight design provides protection against moisture and water ingress
- Supports wire sizes from 8 to 1/0 AWG for flexible cord compatibility
- Meets IP67 and NEMA 4X enclosure ratings for harsh environment resistance
Top product applications:
- Industrial Settings
- Construction Sites
- Marine Environments
The HUBBELL IEC Pin and Sleeve Receptacle is a watertight electrical device suitable for industrial applications, rated for 60A and 120/208V AC. This receptacle features a straight connection orientation with screw terminals, supporting wire sizes from 8 to 1/0 AWG. It utilizes a rugged Zytel 101 nylon housing and flange, providing impact- and moisture-resistant housing appropriate for various environments. The unit meets IP67 and NEMA 4X enclosure ratings, ensuring it remains watertight under harsh conditions.
Key Features of the HUBBELL IEC Pin & Sleeve Receptacle:
- Current Rating: Rated for up to 60 amps at 120/208V AC
- Body Material: Constructed from Zytel 101 nylon
- Operating Temperature Range: -40°C to +75°C
- Cord Size Compatibility: Accepts wire sizes from 8 AWG up to 1/0 AWG
- Enclosure Ratings: IP67 and NEMA Type 4X provide water ingress protection in specified conditions
- Flammability Ratings: UL94 V0, UL94 HB, UL94 5VA certified materials
- Resistance Properties: Materials are rated as impact resistant, moisture resistant, and UV stabilized per manufacturer specifications
- Screw Terminals: Secure wire connections via stainless steel screws
- Number of Poles/Wires: Four poles with five wires
- grounded per IEC style
- Standards Compliance: CSA Certified C22.2 No.182.1 & No.0.17
- IEC
- UL1682
- UL94 standards met or exceeded
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 5.50
- Package Height: 5.00
- Package Weight: 2.50
