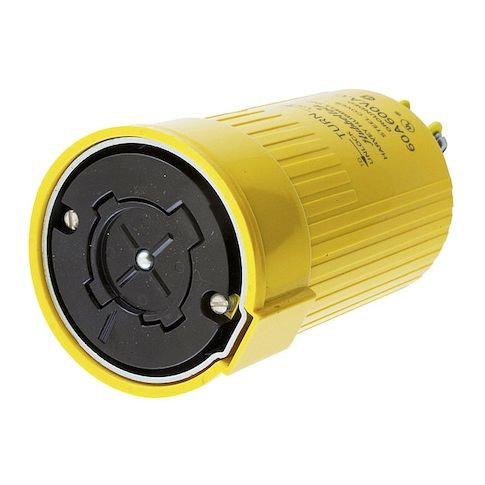

Locking Connector, Non-NEMA, 60 A, 600V AC, Three Phase, 3 Pole, Screw Terminals, Yellow MPN:HBL26418

• The HUBBELL 60A Locking Connector 3P 4W 600VAC YL is a Locking connector intended for use in industrial environments requiring secure electrical connections. It features a thermoplastic housing and insulated body

• copper contacts are molded into the nose.




  Key Features of the HUBBELL 60A Locking Connector:





  • Amperage/Voltage Rating: Rated for 60 amps and up to 600V AC, suitable for three-phase power applications.


  • Cable Range: Accepts cables with diameters from 0.92" to 1.45".


  • Wire Size Compatibility: Accommodates #8 AWG to #4 AWG stranded copper wire only.


  • Body Material: Constructed with black thermoset housing
  • interior components are thermoplastic.


  • Screw Terminals: Uses box terminals with stainless steel screws identified per UL 498 standards (X, Y, Z, White, Green).


  • The device includes a spring-loaded safety shutter that is intended to limit exposure to arcing during connection or disconnection under load. The device includes a spring-loaded safety shutter that is intended to limit exposure to arcing during connection or disconnection under load.


  • Flame Resistance & Temperature Ratings: Meets UL94 V-0 flammability rating
  • operates between -40°C (without impact) and +75°C continuous use.


  • IP30 Rated: Suitable for indoor dry locations unless additional protection is provided.


  • Standards Compliance: Certified to CSA C22.2 No.42 and listed to UL498 requirements.
