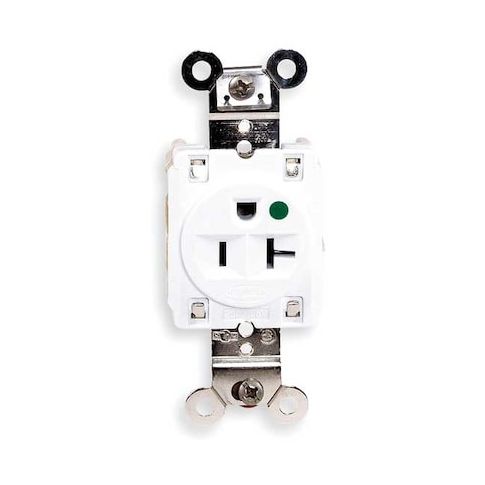

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:HBL8310W
Free Shipping
In Stock
The HUBBELL 5-20R Hospital Grade Receptacle is a high-durability outlet designed for applications requiring extra reliability, such as hospitals, healthcare facilities, and commercial settings. Its one-piece nickel-plated brass integral ground strap and patented bypass contact design ensure secure connections and meet hospital-grade requirements. Suitable for use in areas with high foot traffic, this receptacle features a flush mount design, back and side wired screw terminals, and accommodates #12–#10 AWG copper wire. Its rugged construction withstands temperatures from -40°C to +75°C and meets various certifications, making it an ideal choice for applications where safety and reliability are paramount.
Top product features:
- One-piece nickel-plated brass integral ground strap
- Patented bypass contact design
- Accommodates #12–#10 AWG copper wire
Top product applications:
- Industrial Settings
- Commercial Buildings
- Healthcare Facilities
The HUBBELL 5-20R Hospital Grade Receptacle is a single flush mount outlet rated for 20A and 125V AC. Suitable for use in applications requiring higher durability, it features a one-piece nickel-plated brass integral ground strap and patented bypass contact design. This receptacle meets hospital grade requirements.
Key Features of the HUBBELL 5-20R Hospital Grade Receptacle:
- Amperage/Voltage: Rated for 20A, 125V AC
- NEMA Configuration: 5-20R (2 pole, 3 wire, grounded)
- Mounting Type: Flush mount with included mounting hardware
- Wiring Method: Back and side wired screw terminals
- accommodates #12–#10 AWG copper wire
- Material: Nylon/reinforced thermoplastic polyester housing with brass contacts
- Operating Temperature Range: -40°C to +75°C (without impact)
- Dielectric Strength: Withstands minimum of 2,000V
- Flammability Ratings: Top UL94V-2
- Base UL94V-0 & UL94-5VA
- Certifications/Standards: CSA C22.2 No.42 File 285
- Federal Spec W-C-596
- NEMA WD-6
- UL498 File E2186
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.80
- Package Width: 1.50
- Package Height: 4.10
- Package Weight: 0.23
