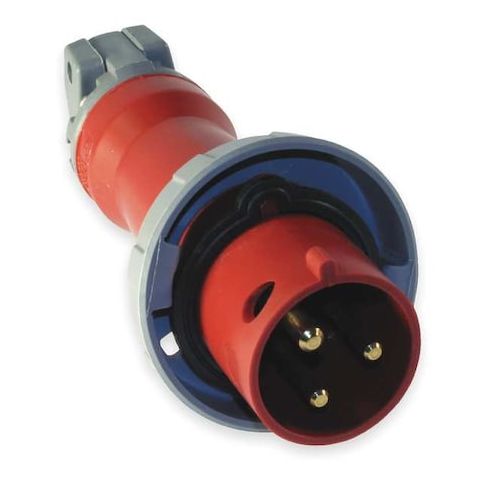

Watertight Pin & Sleeve Plug, 20 A, 480V AC, Single Phase, 2 Pole, IEC Grounding, Red MPN:HBL320P7W

• The HUBBELL IEC Pin and Sleeve Plug is an electrical connector rated for 20A at 480V AC (single phase) with IP67 ingress protection. This plug features a 2-pole, 3-wire configuration, rated for 20A at 480V AC single-phase operation. Its rugged construction includes a non-metallic Zytel 801 nylon housing and solid brass pins, providing resistance to impact, moisture, and electrical tracking. The device uses pressure terminal screws for wire connection and accommodates cord diameters from 0.36 to 0.78 inches.





  Key Features of the HUBBELL IEC Pin and Sleeve Plug:





  • Current/Voltage Rating: Rated for 20A at 480V AC (single phase)


  • Watertight Construction: Gasketed sealing ring with IP67 ingress protection


  • Material: Non-metallic Zytel 801 nylon body
  • composite construction


  • Contact Design: Solid one-piece brass pins with raised collar around each phase pin


  • Cord Mounting: Accommodates cord diameters from 0.36 to 0.78 inches
  • compatible with #14 AWG to #10 AWG cords


  • Operating Temperature Range: -40°C to +75°C continuous use


  • Wire Connection Type: Screw terminals (pressure terminal screws)


  • Grounding Style: IEC grounded design


  • Certifications/Standards: CSA Certified LR280C
  • UL Classified to IEC 60309-1/-2
  • UL1682
  • UL1686C2
