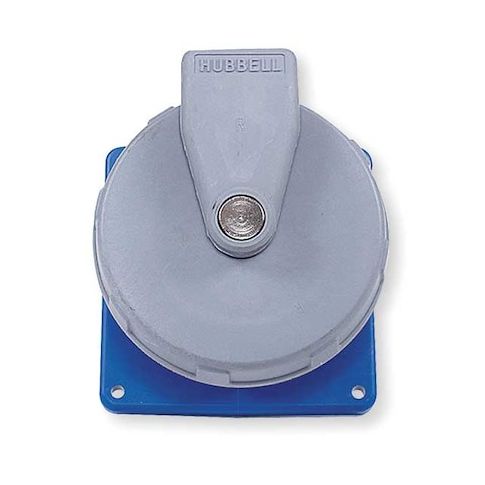

Watertight Pin & Sleeve Receptacle, 30 A, 120/208V AC, Three Phase, 4 Pole, IEC Grounding, Blue MPN:HBL530R9W

• The HUBBELL IEC Pin and Sleeve Receptacle features IP67 ingress protection according to IEC 60529

• includes neoprene gasket material.




  The HUBBELL IEC Pin and Sleeve Receptacle is suitable for use in industrial environments requiring 30A, 120/208V AC connections. Rated for 30A and 120/208V AC, this receptacle features a straight connection orientation with screw terminal connectivity, supporting wire sizes from #12 AWG to #8 AWG. The unit is constructed with a durable Zytel 101 nylon body and housing, providing resistance to corrosion, impact, moisture, and UV exposure. It meets multiple industry standards including CSA C22.2 No. 182.1 and UL IEC 60309-1/-2.





  Key Features of the HUBBELL IEC Pin & Sleeve Receptacle:





  • Current/Voltage Rating: Rated for 30A at 120/208V AC three-phase power


  • Ingress Protection: Rated IP67 per IEC 60529
  • includes neoprene gasket material


  • Material: Body, flange, and housing made from Zytel 101 nylon thermoplastic
  • retainer is high-impact thermoset


  • Cord Accommodation: Accepts wire sizes from #12 AWG to #8 AWG via pressure terminal screws


  • Temperature Range: Operates between -40°C to +75°C continuous temperature


  • Flammability Rating: Meets UL 94 HB or better requirements


  • Color Coding: Blue housing allows easy identification per IEC standards


  • Circuit Configuration: Four poles/five wires (3Y phase), grounded per IEC conventions


  • Cap Type: Spring-loaded self-closing cover


  • Standards Compliance: Certified to CSA C22.2 No.182.1
  • UL E146032
  • IEC 60309-1/-2 specifications
