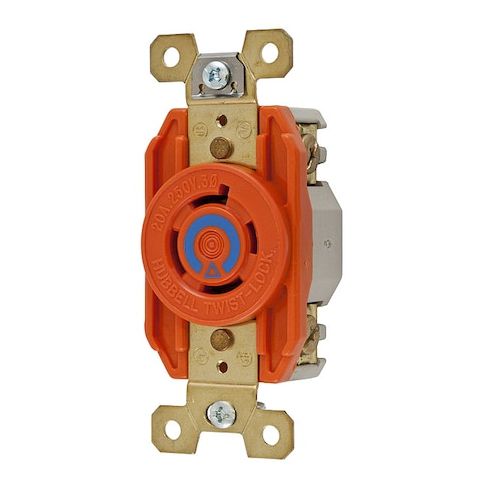

Locking Receptacle, L15-20R, 20 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals MPN:IG2420
Free Shipping
In Stock
The HUBBELL 20A Isolated Ground Locking Receptacle is a versatile and reliable industrial-grade device designed for use in a variety of electrical applications and environments. Rated for 20 A and 250V AC, this 3-pole, 4-wire receptacle supports three-phase systems and features an isolated ground for enhanced safety and reliability. Perfect for use in industrial settings, laboratories, and other areas requiring high-performance electrical connections, this receptacle offers easy installation and maintenance, making it an ideal choice for applications where durability and efficiency are paramount.
Top product features:
- Operates at 240V AC
- Supports up to 20 amps
- Accepts #16 #8 AWG solid or stranded copper wire via screw terminals
Top product applications:
- Industrial Panelboards
- Machine Tools
- Automated Manufacturing Systems
The HUBBELL 20A Isolated Ground Locking Receptacle is an industrial-grade device rated for use in specified electrical applications and environments. This 3-pole, 4-wire receptacle supports up to 20 amps and operates at 240V AC (NEMA L15-20R configuration). Its isolated ground feature separates the grounding contacts from the mounting strap, including an isolated ground feature that separates the grounding contacts from the mounting strap. The unit features insulation barrier construction and accepts both back and side wiring with screw terminals.
Key Features of the HUBBELL 20A Isolated Ground Locking Receptacle:
- Amperage/Voltage: Rated for 20 A, suitable for use with systems up to 250V AC
- NEMA Configuration: L15-20R, three-pole, four-wire design
- Isolated Ground: Dedicated insulated ground wire connection via green grounding screw
- Material Construction: nylon/polyester housing
- Mounting Type: Flush mount installation
- includes mounting hardware
- Wire Accommodation: Accepts #16 - #8 AWG solid or stranded copper wire via screw terminals
- Operating Temperature Range: Maximum continuous temperature of 75°C (167°F), minimum -40°C without impact
- NEMA Enclosure/IP Rating: NEMA Type 1 enclosure
- IP20 rated for indoor dry locations unless otherwise protected
- Certifications/Standards: UL Listed (UL498), CSA Certified C22.2 No.42, Federal Specification W-C-596 compliant
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.20
- Package Width: 4.40
- Package Height: 3.20
- Package Weight: 3.20
