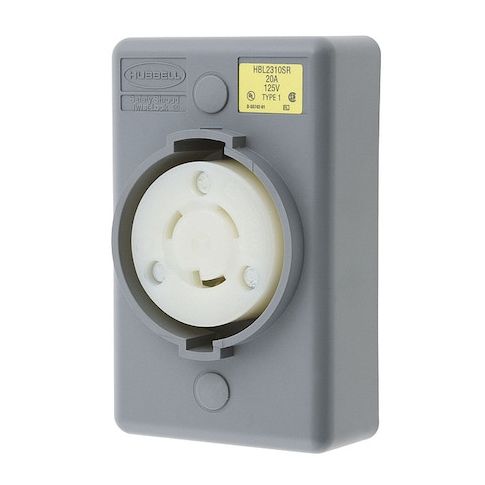

Locking Receptacle, L5-20R, 20 A, 125V AC, Single Phase, 2 Pole, Surface Mount, Screw Terminals MPN:HBL2310SR

• The HUBBELL 20A Twist-Lock Receptacle L5-20R is a locking receptacle rated for use in indoor, dry locations. It features a twist-lock mechanism.





  Key Features of the HUBBELL 20A Twist-Lock Receptacle L5-20R:





  • NEMA Configuration: L5-20R, rated for 125V AC, single phase, 2-pole/3-wire


  • Current Rating: Rated for up to 20 amps


  • Wire Size Compatibility: Accepts #14 to #8 AWG copper wire via screw terminals


  • Housing Material: Valox thermoplastic


  • Mounting Type: Surface mount design with non-flanged construction


  • Temperature Range: Operates from -40°F to 167°F (continuous)


  • Special Features: Corrosion resistant
  • alignment arrows indicate lock/unlock status
  • visible catalog number and voltage rating during use


  • Contact/Spring Material: Brass contacts and .031" brass springs for reliable conductivity


  • Flammability Rating: UL94 V-2 or better per CSA standards


  • NEMA Enclosure/IP Rating: NEMA Type 1 enclosure
  • IP20 protection level (for indoor use only)


  • Certain Standards Met: UL 498 listed, CSA Certified C22.2 No.42, Federal Specification W-C-596 compliant
