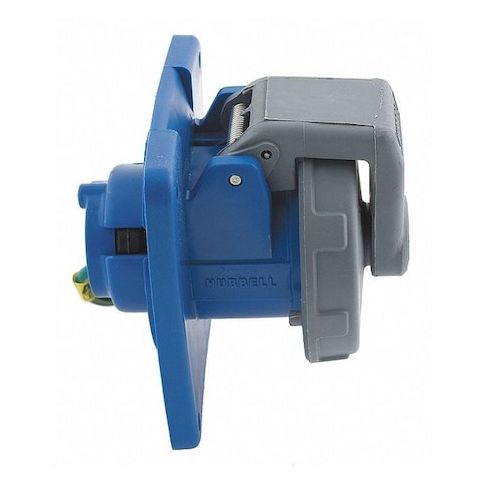

Watertight Pin & Sleeve Receptacle, 100 A, 250V AC, Three Phase, 2 Pole, IEC Grounding, Blue MPN:HBL3100R6W
Free Shipping
In Stock
The HUBBELL IEC Pin and Sleeve Receptacle is a rugged, watertight electrical device designed for industrial applications requiring secure connections, moisture resistance, and impact resistance. Rated for 100A at 250V AC, this receptacle features a flanged design with a spring-loaded cap and gasketed seal to maintain watertight integrity. Ideal for use in harsh environments, such as construction sites, manufacturing facilities, and outdoor equipment, this receptacle provides reliable operation in temperatures from -40°C to +75°C. Its IEC grounding configuration and three-phase operation make it suitable for a wide range of industrial applications, including heavy machinery, power tools, and electrical distribution systems.
Top product features:
- Watertight integrity is maintained through a spring-loaded cap with gasketed seal.
- The receptacle features a rugged, non-metallic housing made from Zytel 101 nylon with a flanged design.
- It accepts wire sizes from 3 AWG up to 1/0 AWG using screw terminals.
Top product applications:
- Industrial Control Panels
- Marine and Offshore Oil and Gas Platforms
- Heavy-Duty Manufacturing Facilities
The HUBBELL IEC Pin and Sleeve Receptacle is a watertight electrical device intended for industrial applications, rated for 100A and 250V AC. This receptacle features a rugged, non-metallic housing made from Zytel 101 nylon with a flanged design and spring-loaded cap with gasketed seal to maintain watertight integrity. It is compatible with environments where secure connections, moisture resistance, and impact resistance are required.
Key Features of the HUBBELL IEC Pin and Sleeve Receptacle:
- Current/Voltage Rating: Rated for 100A at 250V AC
- Ingress Protection: IP67 rating
- NEMA Type 4X enclosure per manufacturer specifications regarding water and dust ingress
- Material Construction: Housing, body, flange made from Zytel 101 nylon
- retainer constructed of high-impact thermoset material
- Cord Accommodation: Accepts wire sizes from 3 AWG up to 1/0 AWG using screw terminals
- Temperature Range: Operates between -40°C to +75°C maximum temperature
- Grounding Style: IEC grounded configuration with shrouded contacts
- Circuit Configuration: Three-phase operation with two poles and three wires
- Cover/Gasket System: Includes a self-closing gasketed cover with neoprene gasket
- Color Coding: Blue housing allows quick identification of voltage rating per IEC standards
- Standards Compliance: Meets CSA C22.2 No.0.17 & No.182.1, UL1682 & UL94 HB requirements
- conforms to IEC specifications
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.30
- Package Width: 6.40
- Package Height: 5.80
- Package Weight: 3.80
