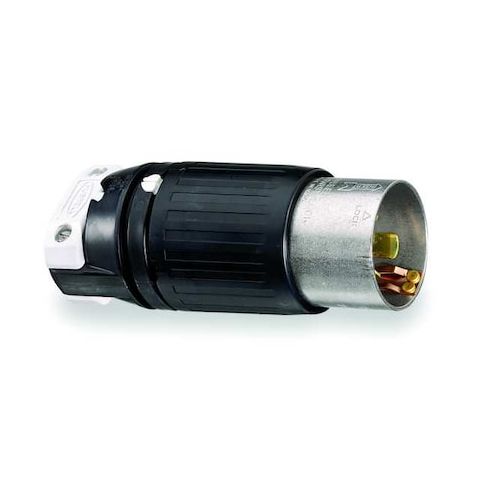

Locking Plug, Non-NEMA, 50 A, 250/600V AC, Single Phase, 3 Pole, Screw Terminals, Black, White MPN:HBL7765C

• The HUBBELL 50A Twist-Lock Plug is a locking plug with twist-lock engagement intended for industrial electrical connections. It features a nylon housing and brass blades

• intended for indoor use in dry locations. The plug accommodates cord sizes from 0.750 to 1.125 inches and supports wire sizes ranging from 8 AWG to 4 AWG, with screw terminal connections.




  Key Features of the HUBBELL 50A Twist-Lock Plug:





  • Current/Voltage Rating: Rated for 50 A at up to 600V AC or 250V DC


  • Number of Poles/Wires: Three poles and four wires


  • Housing Material: Nylon housing
  • impact and chemical resistance per manufacturer specifications


  • Blade Material: Brass blade material


  • Cord Size Range: Accepts cords from 0.750 in to 1.125 in diameter (maximum cable diameter up to 1.25 in)


  • Wire Size Compatibility: Supports minimum wire size of 8 AWG and maximum of 4 AWG


  • Operating Temperature Range: -40°C minimum to +75°C maximum continuous operation


  • NEMA Configuration: Non-NEMA
  • polarized design with shrouded construction


  • Screw Terminals: screw terminal connections


  • Standards Compliance: CSA Certified C22.2 No.42, UL498
  • UL94 HB flammability rating
  • IP20 rated enclosure
