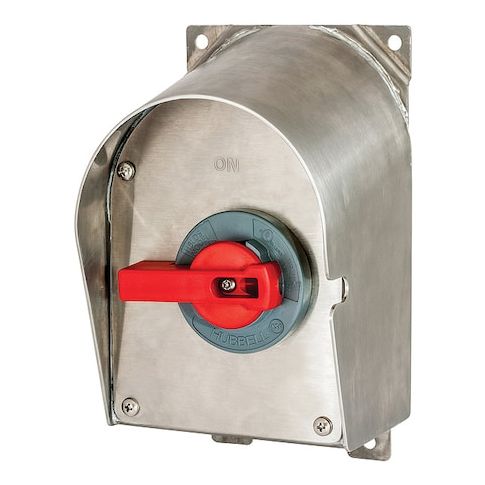

Nonfusible, Disconnect Switch, Heavy Duty, 600 V, 3PST MPN:HBLDS6SSRAC

• The HUBBELL Nonfusible Enclosed Disconnect Switch is a 3-pole switch rated for 60 A and up to 600V AC. Designed for both indoor and outdoor use, it features an enclosure made of nonporous 304 stainless steel

• NEMA Type 4X and IP69K rated for indoor or outdoor installation, with ratings for resistance to water ingress and environmental exposure. This disconnect switch is UL/CSA listed as a manual motor controller in accordance with NEC section 430.102(B).




  Key Features of the HUBBELL Nonfusible Enclosed Disconnect Switch:





  • Current Rating: Rated for up to 60 A at maximum voltage of 600V AC


  • Pole Configuration: Three poles (3PST contact form), compatible with three-phase systems


  • Enclosure Material & Protection: Enclosure is made of nonporous 304 stainless steel
  • NEMA Type 4X and IP69K rated for indoor or outdoor installation


  • Nonfusible Design: Configured as a non-fusible disconnect switch


  • Horsepower Ratings: Rated at: 30 hp @240V AC, 60 hp @480V AC, and 50 hp @600V AC maximum horsepower capacities per voltage specification


  • Mounting Style: Fixed feet mounting style for secure installation


  • Operating Temperature Range: -40°C minimum (without impact) to +75°C maximum continuous operation


  • AUX Contact Capability: Accepts up to two auxiliary contacts
  • includes neutral assembly


  • Certifications & Standards: UL/CSA listed
  • NSF certified for hygiene in food processing applications
  • meets OSHA Lockout/Tagout handle visibility requirements
