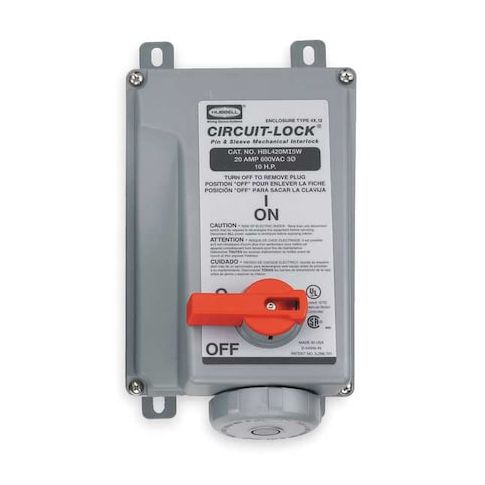

Mechanical Interlock, Pin And Sleeve, 10HP MPN:HBL420MI5W
Free Shipping
In Stock
The HUBBELL Mechanical Interlock, Pin and Sleeve, 10HP is a reliable and versatile device designed for use in a variety of applications, including industrial and commercial settings. This mechanically interlocked device provides a secure and tamper-evident disconnect solution, ensuring safe and efficient operation of up to 10 HP motors. With its IP67/NEMA 4X rating, it can withstand harsh environments and is suitable for both indoor and outdoor locations. The device also features a lockable handle for lockout/tagout practices, making it an ideal solution for industries that require high levels of safety and compliance.
Top product features:
- The device integrates a disconnect switch with a pin and sleeve receptacle in one non-metallic enclosure, allowing observation of plug status.
- The device operates only when the plug is fully inserted, providing a secure connection.
- The device features a lockable handle compatible with lockout/tagout practices as outlined by OSHA, supporting safe and secure operation.
Top product applications:
- Industrial Power Distribution Systems
- Power Generation and Transmission Systems
- Heavy-Duty Manufacturing and Assembly Lines
The HUBBELL Mechanical Interlock, Pin and Sleeve, 10HP is a mechanically interlocked device rated for use with specified current levels and IP67/NEMA 4X/12 ingress protection in both indoor and outdoor locations. This unit integrates a disconnect switch with a pin and sleeve receptacle in one non-metallic enclosure, including a feature that allows observation of plug status. It features a lockable handle compatible with lockout/tagout practices as outlined by OSHA and operates only when the plug is fully inserted. The device supports up to 10 HP motors at 600V AC (three-phase), accepts compatible plugs such as part number 3D137, and is constructed from thermoplastic housing for durability.
Key Features of the HUBBELL Mechanical Interlock Device:
- Electrical Connection: Pin and sleeve configuration rated for 20 A at 600V AC (three-phase)
- Horsepower Rating: Suitable for motor loads up to 10 HP
- Watertight Performance: IP67 ingress protection
- NEMA Type 4X rating
- Operating Temperature Range: -40°C to +75°C continuous operation
- Grounded Design: Includes grounding feature with pressure terminal screws
- Circuit Protection: Non-fused mechanical interlock
- no integrated circuit breaker
- Material Construction: Thermoplastic housing with screw mounting hardware included
- Cable Compatibility: Accepts wire sizes from #14 AWG to #10 AWG
- Standards Compliance: UL Listed
- flammability rating UL94-5VA/V-0 classification
- Locking Handle Feature: Supports lockout/tagout functionality
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.40
- Package Width: 7.90
- Package Height: 7.20
- Package Weight: 5.85
