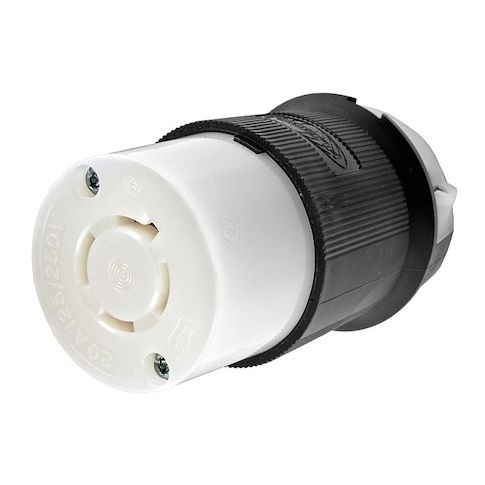

Locking Connector, L14-20R, 20 A, 125/250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White MPN:HBL2413
Free Shipping
In Stock
The HUBBELL 20A Twist-Lock Connector (L14-20R) is a reliable and secure solution for industrial and commercial electrical applications. Rated for 125/250V AC and supporting up to 20 amps of current, this three-pole, four-wire connector features screw terminals and an impact-resistant nylon housing. Its cord grip design reduces wire strain, while the funnel-shaped wire entry accommodates wires sized #16 AWG to #8 AWG. Suitable for indoor dry locations, this connector complies with UL94 HB and CSA standards, making it an ideal choice for applications such as machinery, equipment, and power distribution systems.
Top product features:
- Cord Grip Design: intended to reduce strain on wire terminations.
- Wire Entry: funnel-shaped entry accommodates wires sized #16 AWG to #8 AWG stranded copper only.
- Dust Shield: includes a dust shield intended to limit ingress of contaminants into the wiring chamber.
Top product applications:
- Industrial electrical applications
- Commercial electrical applications
- Heavy-duty equipment connections
The HUBBELL 20A Twist-Lock Connector (L14-20R) is a locking connector rated for use in industrial and commercial electrical applications. It features a three-pole, four-wire configuration rated for 125/250V AC and supports up to 20 amps of current. The connector uses screw terminals for secure wire connections and is constructed with an impact-resistant nylon housing suitable for indoor dry locations.
Key Features of the HUBBELL 20A Twist-Lock Connector:
- Cord Grip Design: Intended to reduce strain on wire terminations.
- Wire Entry: Funnel-shaped entry accommodates wires sized #16 AWG to #8 AWG stranded copper only.
- Dust Shield: Includes a dust shield intended to limit ingress of contaminants into the wiring chamber.
- Cable Range: Accepts cords with diameters between 0.350 in and 1.150 in.
- Operating Temperature: Rated for operation within -40°C to 75°C (non-impact conditions).
- Flame Resistance: Complies with UL94 HB or better and CSA standards
- maximum temperature rise of 30°C at full load following overload cycles.
- NEMA Configuration: L14-20R, straight connection orientation
- Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, and listed to UL 498 requirements.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.40
- Package Width: 2.50
- Package Height: 4.10
- Package Weight: 0.40
