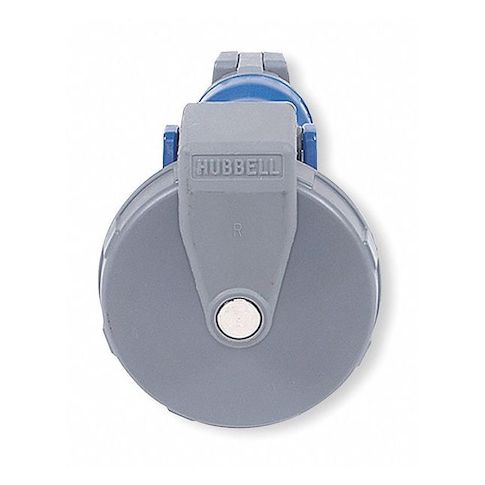

Watertight Pin & Sleeve Connector, 60 A, 120/208V AC, Three Phase, 4 Pole, IEC Grounding, Blue MPN:HBL560C9W
Free Shipping
In Stock
The HUBBELL IEC Pin and Sleeve Connector is a rugged, watertight electrical connector designed for high-ampacity industrial applications. Rated for 60 amps and 120/208V AC, three-phase power with four poles and five wires, this connector provides reliable connectivity in harsh environments. Its Zytel 801 nylon housing resists impact, moisture, and extreme temperatures, ensuring long-lasting performance. Suitable for use in factories, construction sites, and other demanding settings, this connector offers easy wire connection with pressure terminal screws and meets CSA and UL standards for safety and reliability. Its blue color-coded housing and self-closing gasketed cover enhance identification and protection.
Top product features:
- The connector features a rugged Zytel 801 nylon housing with an insulated body, providing resistance to impact, moisture, and harsh environmental conditions.
- It accommodates three-phase power with four poles and five wires (grounding), using pressure terminal screws for secure connectivity.
- The connector has an IP68/IP69K ingress protection rating, indicating it is resistant to dust and water ingress.
Top product applications:
- Industrial Settings with High Ampacity Requirements
- Three-Phase Power Distribution Systems
- Heavy-Duty Electrical Equipment and Machinery
The HUBBELL IEC Pin and Sleeve Connector is a electrical connector rated for use in industrial settings with high ampacity requirements. Rated for 60 amps and 120/208V AC, this connector features a rugged Zytel 801 nylon housing with an insulated body, providing resistance to impact, moisture, and harsh environmental conditions. It accommodates three-phase power with four poles and five wires (grounding), using pressure terminal screws for secure connectivity.
Key Features of the HUBBELL IEC Pin and Sleeve Connector:
- Current/Voltage Rating: 60 A at 120/208V AC
- suitable for high ampacity applications
- Body Material: Zytel 801 nylon
- Environmental Protection: IP68/IP69K ingress protection ratings
- Cable Compatibility: Accepts cable diameters from 0.5 in to 1.45 in
- conductor range #8 AWG to #2 AWG
- Connection Type: Screw terminals (pressure terminal screws) provide reliable wire connection
- Phase/Wiring: Three-phase (3Y), four poles, five-wire grounding configuration
- Temperature Range: -40°C to +75°C
- Standards Compliance: CSA Certified LR280C
- UL Classified to IEC 60309-1 & IEC 60309-2
- UL E146033 listed
- Additionals: Color-coded blue housing for identification, self-closing gasketed cover, shrouded contacts, spring-loaded cap
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.70
- Package Width: 5.60
- Package Height: 4.80
- Package Weight: 3.00
