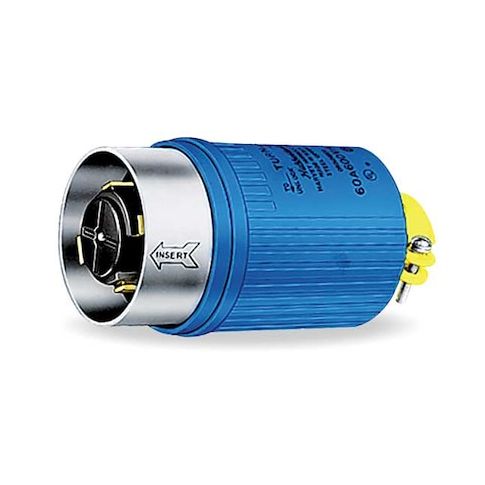

Locking Plug, Non-NEMA, 60 A, 600V AC, Three Phase, 4 Pole, Screw Terminals, Blue MPN:HBL26519

• The HUBBELL 60A Locking Plug (4P 5W, 600VAC, Blue) is a locking plug rated for use in specified electrical applications. It features a polybutylene terephthalate housing and molded-in brass male contacts to provide reliable connectivity and resistance to impact. The plug accommodates cables ranging from 1.000 to 1.50 inches in diameter and supports wire sizes from #8 AWG to #4 AWG using screw terminals.





  Key Features of the HUBBELL - 60A Locking Plug:





  • Amperage/Voltage Rating: Rated for up to 60 A at 600V AC


  • Poles/Wires: Four poles, five wires configuration with straight connection orientation


  • Cable & Cord Range: Accepts cable diameters between 1.000–1.50 in
  • cord size range of 0.875–1.480 in


  • Wire Accommodation: Supports stranded copper wire sizes #8 AWG – #4 AWG via screw terminals


  • Material Construction: Housing made from polybutylene terephthalate
  • interior components are thermoplastic interior components
  • blades constructed from brass


  • Temperature Range: Rated for operation within a temperature range of -40°C to 75°C (without impact)


  • Flammability & IP Rating: Meets UL94 HB flammability standard
  • rated IP30 for moisture resistance


  • Grounded, shrouded construction: Grounded, shrouded construction for added suitability in industrial use


  • Standards Compliance: Certified to CSA standards and listed under UL standards
