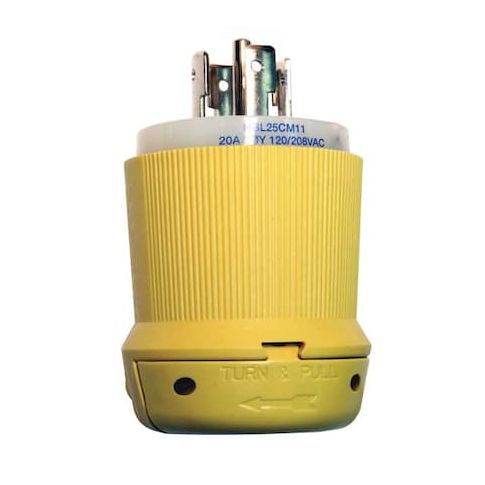

Locking Plug, L21-20P, 20 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Yellow MPN:HBL25CM11
Free Shipping
In Stock
The HUBBELL 20A Marine Locking Plug L21-20P is a heavy-duty electrical connector designed for industrial and marine environments where locking power connections are specified. Suitable for three-phase applications, this locking plug features a ribbed nylon housing and nickel-plated brass blades, providing chemical resistance, corrosion resistance, and impact resistance. Its integral dust shield protects wiring from contaminants, while supporting #16 AWG to #8 AWG stranded copper wire via screw terminals. Ideal for use in harsh environments, this locking plug is listed to UL 498, CSA C22.2 No.42, and Federal Specification W-C-596, making it a reliable choice for a variety of applications, including marine, industrial, and construction projects.
Top product features:
- Three-phase compatibility
- Polarized design
- Chemical resistance, corrosion resistance, impact resistance
Top product applications:
- Industrial environments
- Marine environments
- Heavy-duty power connections
The HUBBELL 20A Marine Locking Plug (L21-20P) is a heavy-duty electrical connector suitable for use in industrial and marine environments where locking power connections are specified. This locking plug features a ribbed nylon housing.
Key Features of the HUBBELL - 20A Marine Locking Plug L21-20P:
- Amperage/Voltage: Rated for 20 A at 120/208V AC with three-phase compatibility.
- NEMA Configuration: L21-20P with polarized design.
- Cord Accommodation: Accepts cord diameters from 0.350" to 1.150"
- compatible with listed portable cords.
- Material Construction: Ribbed nylon housing
- nickel-plated brass blades.
- Resistance Properties: Chemical resistance, corrosion resistance, impact resistance
- integral dust shield protects wiring chamber from contaminants.
- Wire Size Compatibility: Supports #16 AWG to #8 AWG stranded copper wire via screw terminals.
- Operating Temperature Range: Rated for operation between -40°C and +75°C (without impact).
- Certifications & Standards: Listed to UL 498, CSA C22.2 No.42, Federal Specification W-C-596
- IP20 moisture resistance rating
- flammability rated HB or better per UL94/CSA standards.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 112 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.40
- Package Width: 2.40
- Package Height: 3.90
- Package Weight: 0.40
