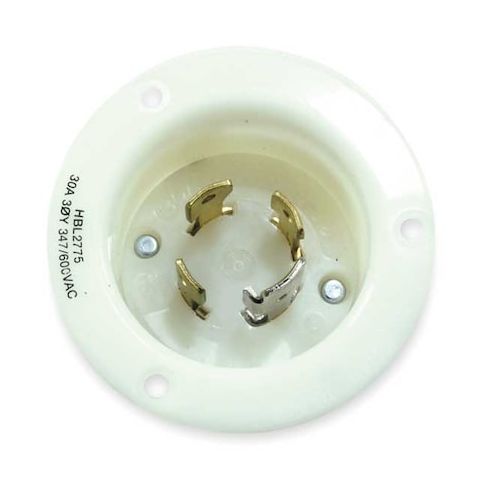

Flanged Locking Inlet, 30 A, 347/600V AC, Three Phase, 4 Pole, Flush Mount, Screw Terminals, White MPN:HBL2775
Free Shipping
In Stock
The HUBBELL 30A Flanged Locking Inlet is a reliable and secure solution for industrial environments, providing a flush-mount, twist-lock inlet for 347/600V AC, three-phase power. With a 4-pole, 4-wire configuration and locking design, it reduces the likelihood of accidental disconnection. Suitable for indoor dry locations, this inlet accommodates #16 AWG to #8 AWG copper wire and features screw terminals for easy installation. Ideal for use in manufacturing facilities, data centers, and other industrial settings, it ensures safe and efficient power distribution. Its durable nylon housing and flange construction withstands harsh conditions, making it a trusted choice for demanding applications.
Top product features:
- Flush-mount design allows for a sleek and compact installation in industrial environments.
- Accommodates #16 AWG to #8 AWG solid or stranded copper wire using screw terminals and supports backwired terminations for installation flexibility.
- Locking design reduces the likelihood of accidental disconnection.
Top product applications:
- Industrial Panelboards
- Data Centers
- Heavy-Duty Machinery
The HUBBELL 30A Flanged Locking Inlet is a flush-mount, twist-lock inlet suitable for use in industrial environments. It features a 4-pole, 4-wire configuration and is rated for 347/600V AC at 30 amps. Constructed with impact-resistant thermoplastic housing and flange, this inlet accommodates #16 AWG to #8 AWG solid or stranded copper wire using screw terminals and supports backwired terminations for installation flexibility.
Key Features of the HUBBELL - 30A Flanged Locking Inlet:
- Amperage/Voltage: Rated for 30 A, 347/600V AC
- three-phase power with four poles and four wires
- NEMA Configuration: L20-30P plug compatibility
- locking design intended to reduce the likelihood of accidental disconnection
- Material Construction: Nylon housing and flange
- brass blades used for electrical connection
- Mounting Style: Flush mount flanged inlet includes mounting screws for installation
- Screw Terminals: Accepts slotted, Phillips, or Robertson drivers
- accommodates #16–#8 AWG copper wire
- Operating Temperature Range: Maximum continuous operation at 75°C
- minimum -40°C (without impact)
- Standards Compliance: Certified to CSA C22.2 No.42, UL 498 listed, Federal Specification W-C-596
- Ingress Protection & Suitability: IP20 rating suitable for indoor dry locations unless additional protection is provided
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 2.60
- Package Height: 3.80
- Package Weight: 0.30
