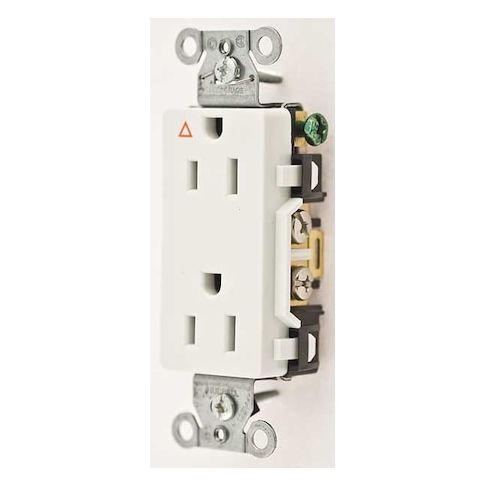

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground MPN:IG15DRW

• The HUBBELL Receptacle is a 15 amp, 125V AC decorator duplex outlet suitable for commercial applications. It features an isolated ground configuration, which separates the ground contacts from the mounting strap. The receptacle has a flush mount design and compatible with back and side wiring using screw terminals, making it suitable for various installation requirements.





  Key Features of the HUBBELL 15A Decorator Duplex Isolated Ground Receptacle:





  • Amperage/Voltage Rating: Rated for 15 amps at 125V AC


  • Isolated Ground: Designed to isolate ground contacts from the mounting strap
  • indicated by triangle marking on face


  • NEMA Configuration: 5-15R duplex outlet


  • Mounting Type: Flush mount with included screw hardware


  • Wiring Method: Back and side wired screw terminals
  • accepts #14 AWG to #12 AWG wire sizes


  • Material: Thermoplastic nylon housing


  • Standards: CSA Certified and UL Listed


  • Aesthetic Design: Style Line® decorator appearance
