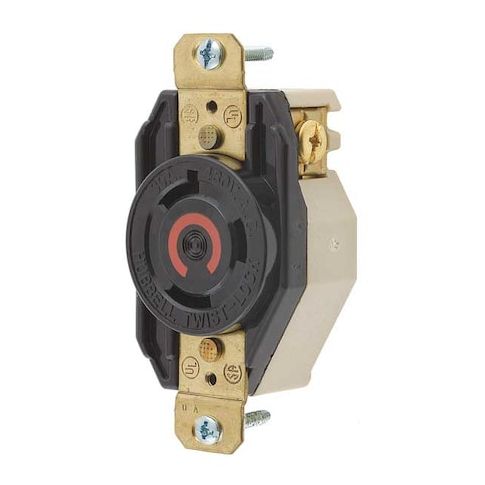

Locking Receptacle, L8-30R, 30 A, 480V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals MPN:HBL2640
Free Shipping
In Stock
The HUBBELL 30A Twist-Lock Receptacle L8-30R is a reliable and secure locking receptacle designed for use in indoor, dry locations. Rated for 480V AC single-phase circuits with a 30A current rating, it features a twist-lock mechanism to reduce the likelihood of accidental disconnection. Suitable for two-pole, three-wire systems, this receptacle supports back and side wiring with wire restraint recesses. Ideal for industrial, commercial, and heavy-duty applications, it provides safe and efficient power distribution in a variety of settings, including manufacturing facilities, data centers, and high-rise buildings. Its durable construction and NEMA Type 1 enclosure ensure long-lasting performance.
Top product features:
- Twist-lock mechanism reduces the likelihood of accidental disconnection.
- Accommodates both back and side wiring with wire restraint recesses.
- Grounded and polarized terminals identified per UL 498 (X, Y, Z, White, Green).
Top product applications:
- Industrial Settings
- Commercial Buildings
- Data Centers
The HUBBELL 30A Twist-Lock Receptacle L8-30R is a locking receptacle rated for use in indoor, dry locations. It features a twist-lock mechanism intended to reduce the likelihood of accidental disconnection and supports single-phase, 480V AC circuits with a current rating of 30 amps. The device accommodates both back and side wiring with wire restraint recesses.
Key Features of the HUBBELL 30A Twist-Lock Receptacle L8-30R:
- NEMA Configuration: L8-30R
- two-pole, three-wire systems at 480V AC.
- Current/Voltage Rating: Rated for operation at 480V AC single phase with a maximum current rating of 30 amps.
- Wire Size Compatibility: Accepts #16 AWG to #8 AWG solid or stranded copper wire only.
- Mounting Type: Flush mount design
- includes mounting hardware.
- Material Construction: Housing material: nylon polyester and PBT
- contact and spring materials: brass.
- Operating Temperature Range: -40°F to 167°F (-40°C to +75°C continuous operation).
- Flammability Rating: UL 94 V-2 or better
- meets CSA C22.2 No.0.6 standards.
- Grounding & Polarization: Grounded and polarized
- terminals identified per UL 498 (X, Y, Z, White, Green).
- Screw Terminal Connections: Standard wiring style using screw terminals for reliable attachment.
- NEMA Enclosure/IP Rating: NEMA Type 1 enclosure rated IP20—intended for indoor use only in dry environments.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.90
- Package Width: 1.60
- Package Height: 4.20
- Package Weight: 0.27
