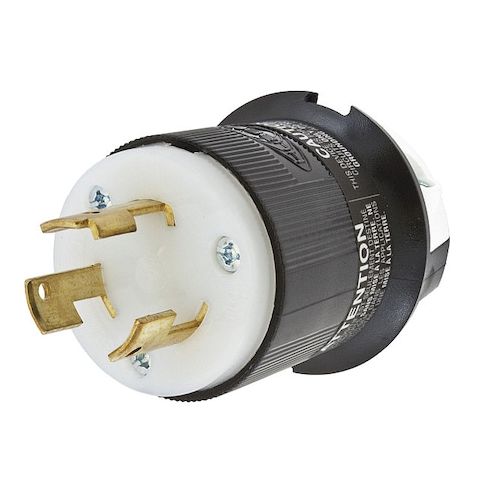

Locking Plug, Non-NEMA, 30 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black, White MPN:HBL3331C
Free Shipping
In Stock
The HUBBELL 30A Twist-Lock Plug is a reliable and durable solution for industrial environments, providing a secure and efficient way to connect and disconnect electrical devices. Rated for 30 amps and 125/250VAC, this locking plug features a ribbed nylon housing and cord grip design to reduce strain on wire terminations. Suitable for use in indoor dry locations, it meets various standards for safety and performance. Ideal for applications in manufacturing, construction, and other industrial settings, this plug ensures safe and reliable electrical connections, reducing downtime and improving overall productivity.
Top product features:
- Ribbed nylon housing with specified impact and chemical resistance properties
- Cord grip design intended to reduce strain on wire terminations during installation
- Accommodates #16 AWG to #8 AWG stranded copper wire via screw terminals
Top product applications:
- Industrial Electrical Panel
- Construction Site Power Distribution
- Machine Shop Electrical Connections
The HUBBELL 30A Twist-Lock Plug is a locking plug rated for use in industrial environments, rated for 30 amps and 125/250VAC. It features a ribbed nylon housing with specified impact and chemical resistance properties, along with a cord grip design intended to reduce strain on wire terminations. The clear, funnel-shaped wire entry includes a funnel-shaped wire entry, while an integral dust shield helps prevent contaminants from entering the wiring chamber.
Key Features of the HUBBELL 30A Twist-Lock Plug:
- Amperage/Voltage Rating: Rated for 30 A and 125/250V AC single-phase operation
- Poles/Wires: 3-pole, 3-wire configuration with non-NEMA (3 blade) design
- Cord Accommodation: Accepts cable diameters from 0.360" to 0.930"
- compatible with listed portable cords within specified diameter range
- Wire Size Compatibility: Accommodates #16 AWG to #8 AWG stranded copper wire via screw terminals
- Housing Material: Ribbed nylon body features ribbed nylon housing with specified impact and chemical resistance properties
- includes integral dust shield
- Cord Grip Design: Cord grip design intended to reduce strain on wire terminations during installation
- Operating Temperature Range: Maximum continuous temperature of 75°C
- minimum -40°C (without impact)
- Flammability & Dielectric Strength: Meets HB or better per UL94
- withstands dielectric voltage up to 2,000V minimum
- Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596
- Listed to UL498
- Straight Connection Orientation with standard wiring style
- IP20 rated for indoor dry locations unless otherwise protected
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.40
- Package Width: 2.40
- Package Height: 4.00
- Package Weight: 0.30
