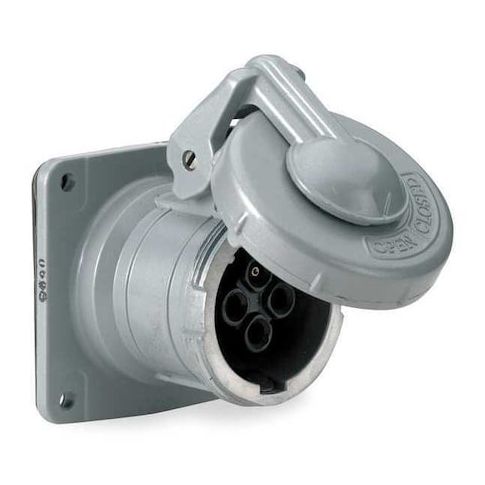

Watertight Pin & Sleeve Receptacle, 100 A, 600V AC/250V DC, Three Phase, 3 Pole, Style 1 Grounding MPN:HBL4100RS1W
Free Shipping
In Stock
The HUBBELL Pin and Sleeve Receptacle is a rugged and reliable watertight electrical device designed for high-capacity connections in demanding industrial settings. With a rating of 100A and 600VAC/250VDC, it provides secure and efficient power distribution in harsh environments. Its durable Valox 357 housing and aluminum shroud withstand extreme temperatures and moisture, while the spring-loaded cover with neoprene gasket limits dust and water ingress. Suitable for applications such as manufacturing, construction, and oil and gas operations, this receptacle offers a reliable and long-lasting solution for heavy-duty electrical connections. Its CSA certification and UL listing ensure compliance with industry standards.
Top product features:
- Accepts #3 AWG to #1/0 AWG wire
- Features a spring-loaded cover with gasket to limit dust ingress
- Includes a metallic shroud with a non-metallic Valox 357 housing for durability and moisture resistance
Top product applications:
- Industrial settings where high-capacity electrical connections are needed
- Heavy-duty machinery and equipment installations
- Outdoor electrical installations in areas prone to moisture and dust
The HUBBELL Pin and Sleeve Receptacle is a watertight electrical device suitable for use in industrial settings where high-capacity electrical connections are needed. Rated for 100A and up to 600VAC, this receptacle features a combination of metallic shrouding with a non-metallic Valox 357 housing to provide both durability and moisture resistance. The unit includes a spring-loaded cover with gasket intended to limit dust ingress.
Key Features of the HUBBELL Pin and Sleeve Receptacle:
- Current/Voltage Rating: 100A, 600VAC/250VDC
- Body Material: Valox 357 thermoplastic housing with aluminum shroud
- Cord/Wire Size Compatibility: Accepts #3 AWG to #1/0 AWG wire
- cord size range from 4 to 2 AWG
- NEMA Enclosure Rating: Type 4X (watertight, moisture resistant)
- Connection Orientation: Straight with screw terminal connections
- Cap Type: Spring-loaded cap with neoprene gasket designed to limit water ingress
- Flammability Rating: UL 94 V-0 enclosure material
- Operating Temperature Range: -40°C to +75°C continuous operation
- Pole/Wire Configuration: Three poles, four wires
- grounded (Style 1 grounding)
- Standards Compliance: CSA Certified (C22.2 No.182.1), UL Listed Type 4X per UL Standard 1682
- Resistance Properties: Construction includes features rated for impact resistance per manufacturer specifications
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 5.40
- Package Height: 4.80
- Package Weight: 3.00
