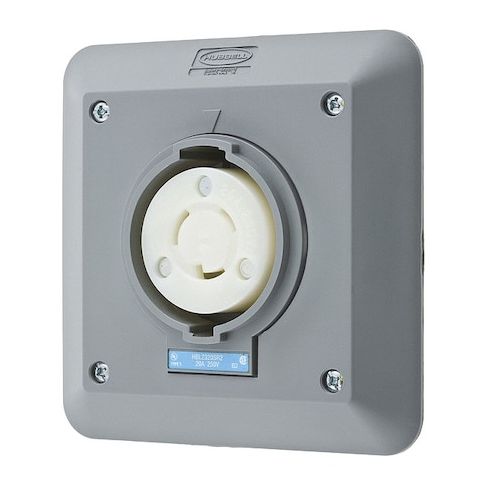

Locking Receptacle, L6-20R, 20 A, 250V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals, Gray MPN:HBL2320SR2
Free Shipping
In Stock
The HUBBELL 20A Twist-Lock Receptacle L6-20R is a heavy-duty, locking receptacle designed for indoor applications in dry locations. Suitable for use in industrial settings, it features a twist-lock mechanism that ensures secure connections with compatible plugs. Its impact-resistant and corrosion-resistant thermoplastic housing withstands heavy use and harsh environments. The receptacle is rated for 20 amps and 250V AC, making it ideal for applications such as machinery, equipment, and manufacturing facilities. With its grounded design and semi-flush mount installation, this receptacle provides reliable power distribution and meets various standards, including UL 498 listing and CSA certification.
Top product features:
- Twist-lock mechanism connects compatible plugs with alignment arrows and lock/unlock symbols for visual confirmation of proper connection.
- Accepts both shrouded and standard NEMA locking plugs.
- Thermoplastic housing is rated as impact resistant and corrosion resistant.
Top product applications:
- Heavy-duty indoor applications in dry locations
- Industrial settings where a secure connection is required
- High-voltage equipment installations where a lockable receptacle is necessary
The HUBBELL 20A Twist-Lock Receptacle (L6-20R) is a locking receptacle rated for 20 amps and 250V AC, suitable for specified applications. It features a twist-lock mechanism connects compatible plugs, with alignment arrows and lock/unlock symbols for visual confirmation of proper connection. The receptacle accepts both shrouded and standard NEMA locking plugs, with catalog number and voltage rating visible during operation. Its thermoplastic housing is rated as impact resistant and corrosion resistant, making it suitable for heavy-duty indoor applications in dry locations.
Key Features of the HUBBELL 20A Twist-Lock Receptacle L6-20R:
- NEMA Configuration: L6-20R
- Lock type: Twist-lock
- Current/Voltage Rating: 20 A, 250V AC
- Phase: Single
- Number of Poles/Wires: 2 poles, 3 wires
- Grounded design
- Wire Size Compatibility: Accepts #14 to #8 AWG copper wire via screw terminals
- Housing Material: Impact modified PBT (Valox)
- Flammability rating VO or better
- Operating Temperature Range: -40°F to 167°F (-40°C minimum without impact)
- NEMA Enclosure Ratings: Types 1, 4, 4X & IP20 ingress protection
- Certain Resistance Properties: Corrosion resistant and impact resistant construction
- Semi flush mount installation
- Shrouded design supports plug retention
- Standards Compliance: UL 498 listed, CSA Certified C22.2 No.42, Federal Specification W-C-596
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.70
- Package Width: 2.30
- Package Height: 5.70
- Package Weight: 0.65
