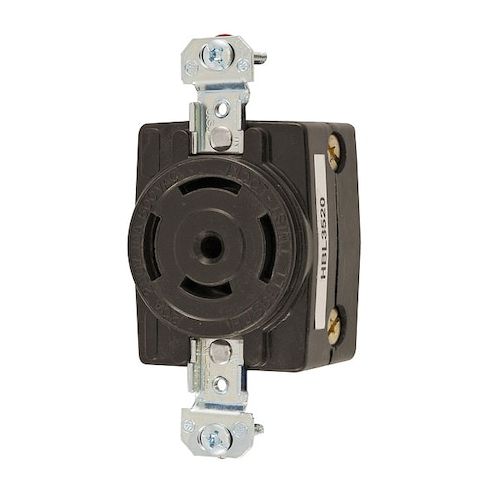

Locking Receptacle, Non-NEMA, 20/10 A, 250/600V AC, Single Phase, 4 Pole, Flush Mount, Black MPN:HBL3520

• The HUBBELL 20/10A Twist-Lock Receptacle is an industrial locking receptacle rated for use in indoor, dry locations. It features a twist-lock mechanism with 4 poles and 5 wires

• rated for operation at 250/600V AC
• compatible with #16 AWG to #8 AWG solid or stranded copper wire. The device is constructed with a nylon face and housing, providing durability in demanding environments.




  Key Features of the HUBBELL 20/10A Twist-Lock Receptacle:





  • Amperage & Voltage Rating: Rated for 20/10 A at 250/600V AC single phase


  • Lock Type: Twist-lock design intended to maintain plug connection during operation


  • Material Construction: Impact-modified PBT base, nylon face and housing
  • brass contacts and mounting system


  • Wire Accommodation: Accepts #16 AWG – #8 AWG solid or stranded copper wire via screw terminals


  • Mounting Type: Flush mount
  • includes mounting hardware (screw mounting)


  • Environmental Suitability: For indoor dry locations only
  • IP20 rating


  • Temperature Range: Operates from -40°C to +75°C continuous without impact


  • Coding & Identification: Face color coding by voltage
  • terminal identifications per UL 498 (X, Y, Z, White, Green)


  • Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596
  • listed to UL 498


  • Corrosion Resistance: All-brass grounding/mounting system provides resistance to corrosion compared to steel systems
