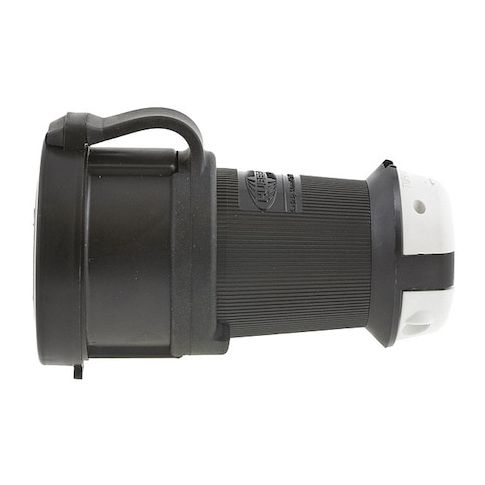

Watertight Locking Connector, L21-30R, 30 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals MPN:HBL2813SW

• The HUBBELL 30A Watertight Twist-Lock Connector (L21-30R) is a locking connector with a protective housing and rated watertight per IP66 suitable for use in industrial and commercial electrical applications. Rated for 120/208V AC three-phase power, it features a four-pole, five-wire configuration with screw terminal wire connections. The connector includes a thermoplastic housing and press-on cap included to maintain its watertight seal when not in use.





  Key Features of the HUBBELL 30A Watertight Twist-Lock Connector:





  • Current/Voltage Rating: 30 A, 120/208V AC


  • NEMA Configuration: L21-30R
  • Three phase
  • Four poles, five wires


  • Housing Material: Impact modified PBT (Valox)
  • insulation material is thermoplastic


  • Cord Size Compatibility: Accepts cables from 0.35 in to 1.15 in diameter
  • maximum wire size of 8 AWG and minimum of 16 AWG


  • NEMA Enclosure & IP Rating: Type 12, Type 4, Type 4X
  • IP66 rated for moisture resistance


  • Operating Temperature Range: -40°C to +75°C


  • Flammability & Dielectric Strength: UL94 V-0 flammability rating
  • dielectric strength up to 2000V


  • Screw terminals with stainless steel screws


  • Closure cap included
