WTMchIntrlkDvcFsd, 3P4W, 30 A, 480V AC, 15hp MPN:HBL430MIF7W
Free Shipping
In Stock

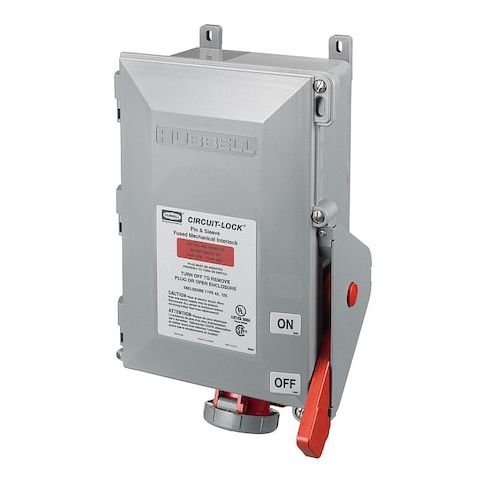

The HUBBELL Watertight Mechanical Interlock is a versatile and reliable solution for various environments, integrating a disconnect switch with a pin and sleeve receptacle in a non-metallic enclosure. Its high-visibility red handle and locking capability support lockout/tagout procedures, ensuring safety and compliance. Suitable for use in harsh conditions, this interlock features a rugged housing rated IP66, NEMA 4X, and 12 for watertight performance. Ideal for applications in industries such as manufacturing, construction, and oil and gas, this product provides reliable circuit protection and connectivity in demanding settings. Its compact design and adjustable mounting options make it easy to integrate into existing systems.
Top product features:
- Integrated Class J fuse provides circuit protection
- High-visibility red handle capable of being locked in the OFF position to support lockout/tagout procedures
- Patented Plug-Check mechanism detects presence of compatible plug (5Z94
Top product applications:
- Industrial Control Panels
- Manufacturing and Assembly Lines
- Marine and Offshore Applications
The HUBBELL Watertight Mechanical Interlock is a fused, pin and sleeve device that integrates a disconnect switch with a pin and sleeve receptacle in a non-metallic enclosure for use in various environments. It includes an interlock mechanism that restricts plug removal when the switch is engaged. The unit features a high-visibility red handle capable of being locked in the OFF position to support lockout/tagout procedures, as well as an enclosure door equipped with locking capability. Its rugged housing rated IP66
- NEMA 4X and 12 for watertight performance.
Key Features of the HUBBELL Watertight Mechanical Interlock:
- Electrical Connection: Pin and sleeve configuration rated for 30 A, 480V AC, three-phase service
- Fuse Protection: Integrated Class J fuse provides circuit protection
- Enclosure Rating: Rated IP66
- NEMA 4X and 12 for watertight performance
- Operating Temperature Range: -40°C to 75°C
- Cord Size Compatibility: Accepts wire sizes from 12 AWG to 8 AWG
- Plug Detection: Patented Plug-Check™ mechanism detects presence of compatible plug (5Z941)
- Casing Material: Thermoplastic housing with UV stabilization
- gasket made from neoprene
- Contact Material: Brass contacts ensure reliable conductivity
- Mounting Hardware Included: Adjustable mounting feet provided for flexible installation options
- Screw Material: Constructed with 300 stainless steel screws for corrosion resistance
- Standards Compliance: CSA Certified, cULus listed
- UL94 flammability rating of 5VA/V-0
Additional Information
- Country of Origin: PL
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.70
- Package Width: 12.20
- Package Height: 9.20
- Package Weight: 18.00
