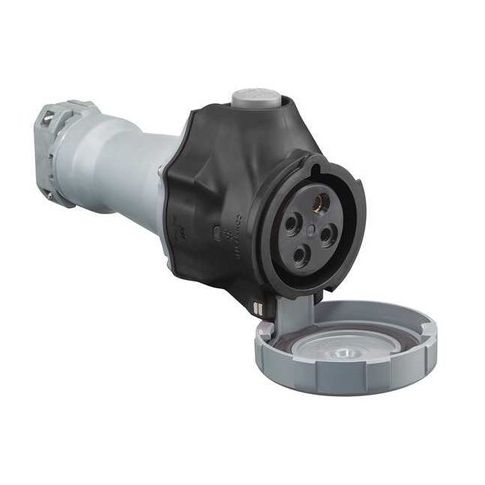

Watertight Pin & Sleeve Connector, 30 A, 600V AC, Three Phase, 3 Pole, IEC Grounding, Black, NEMA 4X MPN:HBLS430C5W

• The HUBBELL Advantage™ Series Pin and Sleeve Connector is a 30A, 600VAC device suitable for use in industrial electrical systems. This connector is compatible with IEC 60309-2 devices and rated as a disconnecting means for motor and branch circuits. It features a compact design with robust PBT housing that withstands wet, corrosive, and impact-prone environments. The unit includes power-indicating LEDs, continuous ground engagement, and color-coded housings for voltage identification.





  Key Features of the HUBBELL Advantage™ Series Pin & Sleeve Connector:





  • Current/Voltage Rating: Rated for 30 A at 600V AC
  • compatible with motors rated up to 30 hp


  • Housing Material: Valox 357 (PBT) housing
  • rated as resistant to impact, corrosion, and moisture
  • suitable for wet locations


  • Environmental Ratings: IP68/IP69K ingress protection
  • NEMA Type 4X enclosure rating


  • Temperature Range: Operates from -40°C to +75°C


  • Cable Accommodation: Accepts cable diameters from 0.5 in to 1.25 in
  • wire size range from #12 AWG to #8 AWG


  • Connection Type: Screw terminals with straight orientation
  • shrouded contacts made of beryllium copper


  • Power Indication: Equipped with power-indicating LED lights on the housing


  • Grounding Style: IEC grounded configuration with continuous ground engagement


  • Cap Type & Cover: Spring-loaded cap with self-closing gasketed cover


  • Certifications/Standards: CSA Certified LR280C
  • UL Classified to IEC 60309-1/-2
  • UL E146033 listed
