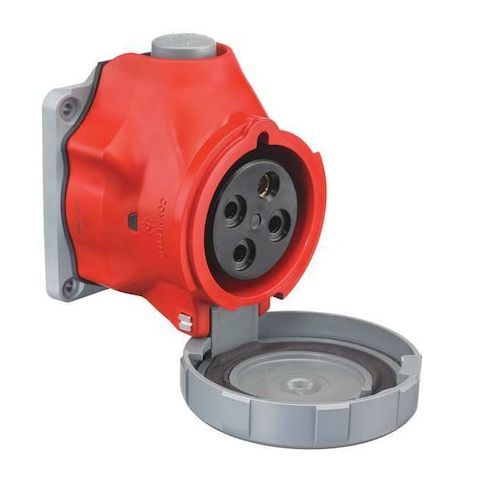

Pin & Sleeve Receptacle, 30 A, 480V AC, Three Phase, 3 Pole, IEC Grounding, Red, NEMA 4X MPN:HBLS430R7W
Free Shipping
In Stock
The HUBBELL Advantage Series Pin and Sleeve Receptacle is a robust and reliable solution for industrial electrical connections, rated for 30A at 480V AC, three-phase operation. Its NEMA 4X enclosure and IP67/IP69k rating ensure protection against harsh environments, making it ideal for demanding applications such as power distribution, motor control, and industrial automation. The receptacle's disconnecting functionality and power-indicating LEDs provide safe and efficient operation, while its flanged body and spring-loaded cap ensure secure closure. Suitable for use in industries such as manufacturing, construction, and oil and gas, this receptacle offers a durable and versatile solution for high-power electrical connections.
Top product features:
- Rated for 30 A at 480V AC, three-phase operation
- Accepts wire sizes from 12 AWG to 8 AWG via screw terminals
- Functions as a disconnecting means for motor circuits and branch circuits, per applicable standards
Top product applications:
- Industrial electrical connections
- Motor circuits
- Branch circuits
The HUBBELL Advantage™ Series Pin and Sleeve Receptacle is a 30A, 480VAC device intended for use in industrial electrical connections. It features a straight connection orientation and is compatible with IEC 60309-2 pin and sleeve devices. The receptacle functions as a disconnecting means for motor circuits and branch circuits, per applicable standards, suitable for use in demanding environments.
Key Features of the HUBBELL Advantage™ Series Pin & Sleeve Receptacle:
- Current/Voltage Rating: Rated for 30 A at 480V AC, three-phase operation
- Housing Material: Valox 357 (polybutylene terephthalate)
- NEMA/IP Ratings: NEMA Type 4X enclosure
- IP67/IP69k rated for protection against dust, water, and high-pressure washdowns
- Operating Temperature Range: -40°C to 75°C
- Wire Size Compatibility: Accepts wire sizes from 12 AWG to 8 AWG via screw terminals
- Horsepower Rating: Rated up to 20 hp
- Power Indicating Light: Includes power-indicating LEDs
- Grounding Style: Unswitched ground per IEC standards
- Flange Type & Cap: Flanged body with spring-loaded cap for secure closure
- Circuit Disconnect Functionality: Functions as a disconnecting means for motor circuits and branch circuits, per applicable standards
- Standards Compliance: UL Listed (File E146032), CSA Certified LR285C
- UL94 V-0 flammability rating
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.30
- Package Width: 5.60
- Package Height: 4.80
- Package Weight: 1.74
