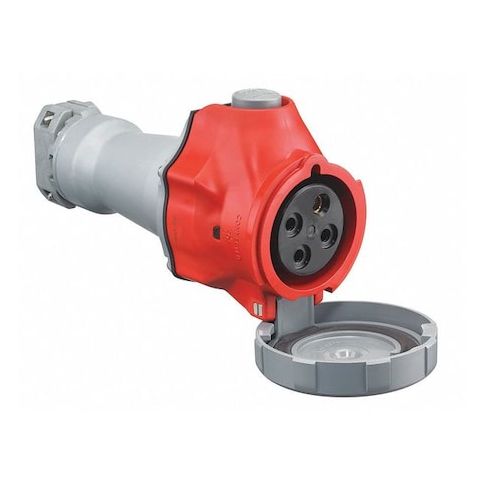

Watertight Pin & Sleeve Connector, 30/32 A, 380/415V AC, Three Phase, 3 Pole, IEC Grounding, Red MPN:HBLS430C6W
Free Shipping
In Stock
The HUBBELL Advantage Series Pin and Sleeve Connector is a reliable and durable solution for industrial applications. Rated for operation in environments with exposure to moisture, this connector features a PBT housing with color-coded identification and is compatible with IEC 60309-2 devices. Suitable as a disconnecting means for motor and branch circuits, it supports three-phase operation with four wires and includes power-indicating LEDs. Ideal for use in harsh environments, this connector is perfect for applications such as outdoor construction sites, manufacturing facilities, and industrial plants, providing a safe and efficient connection for electrical systems.
Top product features:
- Accepts cable diameters from 0.5 in to 1.25 in
- Includes power-indicating LED lights
- Rated as suitable as a disconnecting means for motor or branch circuits (7-1/2 hp rating)
Top product applications:
- Disconnecting means for motor circuits
- Disconnecting means for branch circuits
- Three-phase power distribution
The HUBBELL Advantage™ Series Pin and Sleeve Connector is a 30A, 380/415VAC industrial connector rated for operation in environments with exposure to moisture. This pin & sleeve connector features a PBT housing with color-coded identification and is compatible with IEC 60309-2 devices. It is rated as suitable as a disconnecting means for motor and branch circuits, includes power-indicating LEDs, and supports three-phase operation with four wires.
Key Features of the HUBBELL Advantage™ Series Pin & Sleeve Connector:
- Current/Voltage Rating: 30/32 A at 380/415V AC
- Phase/Wiring: Three-phase
- 3 poles, 4 wires
- Housing Material: Valox 357 (PBT) housing
- Ingress Protection/NEMA Rating: IP68/IP69K
- NEMA Type 4X enclosure
- Operating Temperature Range: -40°C to +75°C
- Cable Accommodation: Accepts cable diameters from 0.5 in to 1.25 in
- wire size range from #12 AWG to #8 AWG
- Connection Orientation/Type: Straight orientation with screw terminals
- Rated as suitable as a disconnecting means for motor or branch circuits (7-1/2 hp rating)
- Includes power-indicating LED lights
- Grounding Style: IEC grounding
- shrouded design for added protection
- Certain Standards Met: CSA Certified LR280C
- UL Classified to IEC standards (60309-1/-2)
- UL E146033 listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.81
- Package Width: 4.12
- Package Height: 9.81
- Package Weight: 2.13
