Pin & Sleeve Receptacle, 30 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, Blue, NEMA 4X MPN:HBLS430R9W
Free Shipping
In Stock

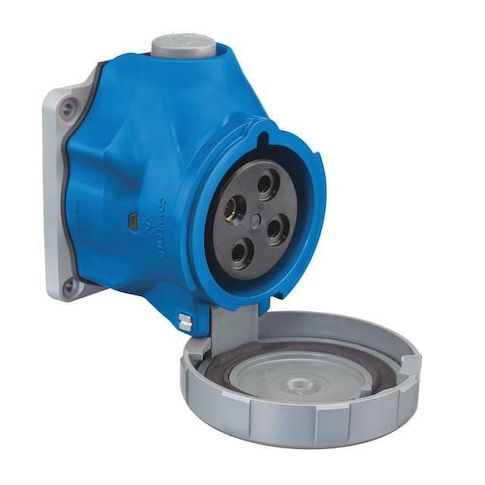

The HUBBELL Advantage Series Pin & Sleeve Receptacle is a versatile and reliable electrical connector designed for industrial applications, including three-phase power distribution and motor circuits. Its compact Valox 357 housing withstands harsh conditions, while stainless steel hardware and shrouded spring-loaded cap enhance durability. Rated for 30 amps at 250V AC, this receptacle features power-indicating lights, supports wire sizes from 12 AWG to 8 AWG, and operates from -40°C to +75°C. Ideal for use in wet or dusty environments, this receptacle is certified for use in various industries, including manufacturing, construction, and oil and gas.
Top product features:
- Operates from -40°C to +75°C
- Switch-Rated as a disconnecting means for both motor circuits and branch circuits
- Equipped with power-indicating lights for visual status confirmation during operation
Top product applications:
- Industrial Motor Control Panels
- Heavy-Duty Construction Equipment
- High-Temperature Furnace Control Systems
The HUBBELL Advantage™ Series Pin and Sleeve Receptacle is a 30A, 250VAC electrical connector intended for industrial applications. This device is compatible with IEC 60309-2 pin and sleeve systems and rated as a switch-rated disconnecting means for motor circuits and branch circuits. Its compact design features a Valox 357 (polybutylene terephthalate) housing that withstands impact, corrosion, moisture, and extreme temperatures.
Key Features of the HUBBELL Advantage™ Series Pin & Sleeve Receptacle:
- Current/Voltage Rating: Rated for 30 amps at 250V AC
- suitable for three-phase power distribution.
- Switch-Rated: Approved as a disconnecting means for both motor circuits and branch circuits.
- Construction: Valox 357 body with stainless steel hardware
- shrouded spring-loaded cap enhances durability.
- NEMA/IP Ratings: NEMA Type 4X enclosure rating
- IP67/IP69k style provide protection against water ingress, dust, and harsh conditions.
- Temperature Range: Operates from -40°C to +75°C
- supports wire sizes from 12 AWG to 8 AWG via screw terminals.
- Power Indication: Equipped with power-indicating lights for visual status confirmation during operation.
- Circuit Compatibility: Mates with existing installed base of IEC 60309-2 devices
- grounded per IEC standards with unswitched ground configuration.
- Certifications: UL Listed (File E146032), CSA Certified (LR285C)
- UL94 V-0 flammability rating ensures material performance under fire exposure conditions.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.25
- Package Width: 4.62
- Package Height: 6.00
- Package Weight: 1.54
