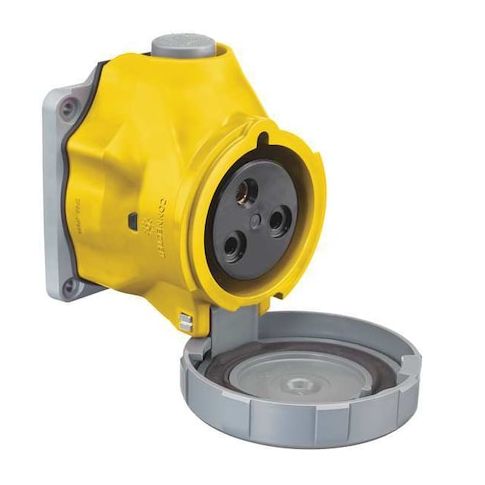

Pin & Sleeve Receptacle, 30 A, 125V AC, Single Phase, 2 Pole, IEC Grounding, Yellow, NEMA 4X MPN:HBLS330R4W
Free Shipping
In Stock
The HUBBELL Advantage Series Pin and Sleeve Receptacle is a robust 30A, 125V AC device designed for industrial electrical applications, including motor circuits and branch circuits. Its durable Valox 357 housing and NEMA 4X/IP67/IP69k ratings ensure protection against harsh environments, dust, and water ingress. With a wide operating temperature range (-40°C to +75°C) and UL94 V-0 flammability classification, this receptacle provides reliable performance in demanding settings. Its power-indicating LEDs and unswitched ground per IEC standards enhance safety and ease of use, making it an ideal solution for industrial facilities, manufacturing plants, and outdoor applications.
Top product features:
- Supports single-phase operation
- Accommodates wire sizes from 12 AWG to 8 AWG
- Includes power-indicating LEDs
Top product applications:
- Motor circuits
- Branch circuits
- Disconnecting means for industrial electrical applications
The HUBBELL Advantage™ Series Pin and Sleeve Receptacle is a 30A, 125V AC device intended for use in industrial electrical applications. It features a straight connection orientation with screw terminal wire connections and is suitable for use as a disconnecting means for motor circuits and branch circuits. The receptacle is compatible with existing IEC 60309-2 pin and sleeve devices, supports single-phase operation, and accommodates wire sizes from 12 AWG to 8 AWG.
Key Features of the HUBBELL Advantage™ Series Pin & Sleeve Receptacle:
- Current/Voltage Rating: Rated for 30 amps at 125V AC
- supports loads up to 2 horsepower
- Housing Material: Valox 357 (polybutylene terephthalate)
- NEMA/IP Ratings: NEMA Type 4X enclosure rating
- IP67/IP69k rated for protection against dust, water ingress, and high-pressure washdowns
- Operating Temperature Range: -40°C to +75°C
- Power Indicating Light: Includes power-indicating LEDs
- Grounding Style: Unswitched ground per IEC standards
- Number of Poles/Wires: Two poles, three wires configuration
- Circuit Disconnect Capability: Listed as a disconnecting means for motor circuits and branch circuits
- Flammability Rating: UL94 V-0 flammability classification
- Standards Compliance: CSA Certified LR285C, File E146032
- UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.30
- Package Width: 5.60
- Package Height: 4.90
- Package Weight: 1.70
