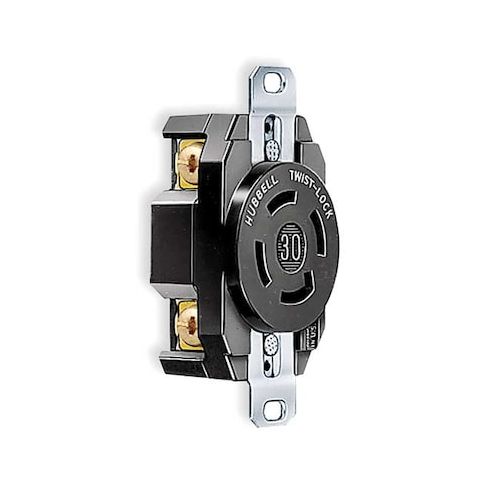

Locking Receptacle, Non-NEMA, 30 A, 120/208V AC, Three Phase, 4 Pole, Flush Mount, Screw Terminals MPN:HBL3430
Free Shipping
In Stock
The HUBBELL 30A Twist-Lock Receptacle is a reliable and secure solution for three-phase electrical applications. Designed for use in industrial, commercial, and construction settings, this locking receptacle provides a tamper-evident and tamper-resistant connection, ensuring the safety of people and equipment. Its four-pole, four-wire configuration and 30A rating make it suitable for a wide range of applications, including machinery, manufacturing equipment, and power tools. With its durable construction and corrosion-resistant brass contacts, this receptacle withstands harsh environments and heavy use, providing a long-lasting and dependable connection.
Top product features:
- Rated for 30 A at 120/208V AC, three-phase operation
- Accepts #16 AWG to #8 AWG solid or stranded copper wire via screw terminals
- Withstands minimum 2,000V dielectric voltage
Top product applications:
- Commercial Buildings
- Industrial Settings
- Outdoor Events
The HUBBELL 30A Twist-Lock Receptacle is a locking receptacle.
Key Features of the HUBBELL 30A Twist-Lock Receptacle:
- Amperage/Voltage: Rated for 30 A at 120/208V AC, three-phase operation
- Poles/Wires: Four-pole, four-wire configuration
- Material Construction: Impact-modified PBT base
- nylon face and housing
- brass contacts and mounting system provide corrosion resistance
- Mounting Type: Flush mount design with included screw-mount hardware
- Wire Accommodation: Accepts #16 AWG to #8 AWG solid or stranded copper wire via screw terminals
- supports both back or side wiring
- Operating Temperature Range: -40°C to +75°C (without impact)
- Flammability Rating: UL 94 V-2 or better for receptacles/inlets
- HB or better for plugs/connectors
- Dielectric Strength & Performance: Withstands minimum 2,000V dielectric voltage
- certified to interrupt current at the specified rating
- Coding & Identification: Face color coded by voltage
- terminal identifications per UL 498 (X, Y, Z, White, Green)
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.90
- Package Width: 1.80
- Package Height: 4.20
- Package Weight: 0.30
