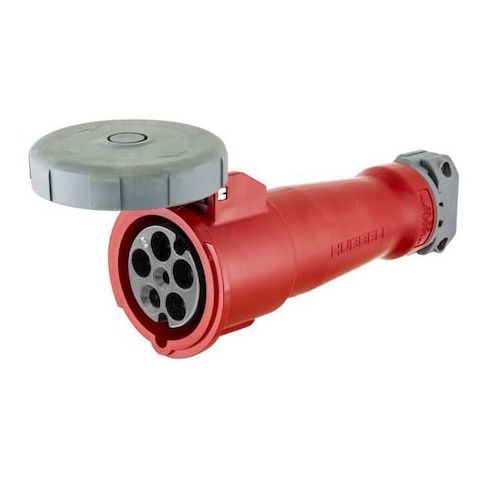

Pin & Sleeve Connector, 100 A, 200/346 to 240/415V AC, Three Phase, 4 Pole, IEC Grounding MPN:HBLS5100C6W

• The HUBBELL Advantage™ Series Pin and Sleeve Straight Blade Connector is an electrical connector rated for use in industrial and commercial settings. Rated for 100 A and compatible with IEC 60309-2 standards, this connector features a compact, cord-mounted design with PBT housing

• see product specifications for material properties. It includes a spring-loaded cap and disconnect button.




  Key Features of the HUBBELL Advantage™ Series Pin and Sleeve Straight Blade Connector:





  • Amperage/Voltage Rating: 100 A
  • rated for 200/346 to 240/415V AC


  • Housing Material: PBT composite body


  • Ingress Protection: IP68/IP69K rated
  • NEMA Type 4X enclosure


  • Cord Mounted Design: Suitable for use with #6 AWG – #1 AWG wire sizes


  • Number of Poles/Wires: Four poles
  • five-wire grounding configuration (three-phase)


  • Spring-Loaded Cap & Disconnect Button: Includes spring-loaded cap and disconnect button


  • Power Indicating Light: Equipped with two LEDs indicating power status


  • Grounding Style: IEC standard grounded connection


  • Temperature Range: Operates from -40°C up to +75°C continuously (without impact)


  • Standards Compliance: UL Listed E146033
  • CSA Certified LR280C
  • UL Classified to IEC 60309-1/-2
