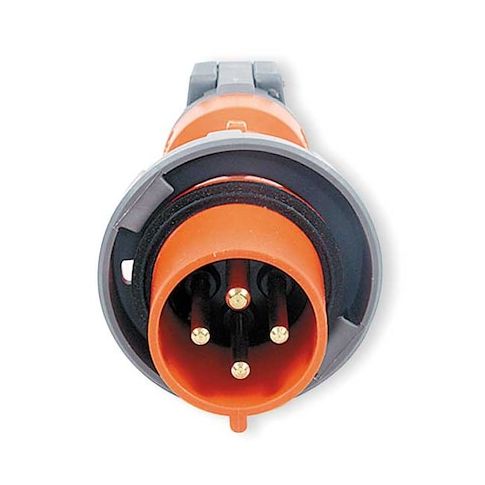

Watertight Pin & Sleeve Plug, 100 A, 125/250V AC, Single Phase, 3 Pole, IEC Grounding, Orange MPN:HBL4100P12W

• The HUBBELL IEC Pin and Sleeve Plug is a watertight electrical connector suitable for industrial and commercial environments. Rated for 100A and 125/250V AC, this plug features a rugged non-metallic housing made from Zytel 801 nylon, with impact-resistant and moisture-resistant housing. It is grounded with an IEC grounding style, accommodates wire sizes from 3 AWG to 1/0 AWG, and includes a gasketed sealing ring.





  Key Features of the HUBBELL IEC Pin & Sleeve Plug:





  • Current Rating: 100 A


  • Voltage Rating: 125/250V AC


  • Number of Poles/Wires: 3 poles, 4 wires


  • Body/Housing Material: Zytel 801 Nylon (non-metallic)


  • Operating Temperature Range: -40°C to +75°C


  • NEMA Enclosure Rating: Type 4X
  • IP67 rated


  • Cable Accommodation: Accepts cable diameters up to 1.065 in
  • accommodates wire sizes from 3 AWG to 1/0 AWG


  • Wire Connection Type: Screw terminals with straight connection orientation


  • Horsepower Rating: Rated at 10 hp maximum


  • Resistance Properties: Impact-resistant, moisture-resistant, watertight construction
  • shrouded design


  • Standards Compliance: CSA Certified C22.2 No.182.1
  • UL E146032
  • UL IEC60309-1 listed products
