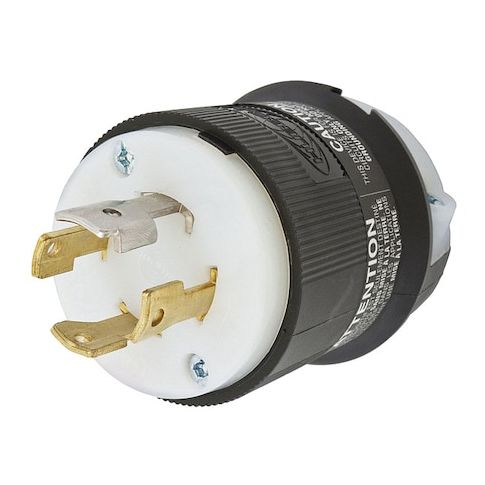

Locking Plug, L19-30P, 30 A, 277/480V AC, Three Phase, 4 Pole, Screw Terminals, Black, White MPN:HBL2761
Free Shipping
In Stock
The HUBBELL 30A Twist-Lock Plug L19-30P is a reliable and durable solution for industrial applications requiring three-phase power connections. Rated for 30 amps and 277/480V AC, this locking plug is designed for use in indoor dry locations, providing a secure and efficient way to connect equipment. Its ribbed nylon housing and screw terminal connections offer impact and chemical resistance, while the cord grip design reduces strain on terminations. Ideal for use in manufacturing, construction, and other industrial settings, this plug meets CSA and UL standards, ensuring safe and reliable operation.
Top product features:
- Ribbed nylon housing with impact and chemical resistant properties
- Clear, funnel-shaped wire entry assists with wiring terminations
- Four-pole, four-wire configuration with screw terminal connections
Top product applications:
- Industrial electrical systems
- Three-phase power distribution systems
- Heavy-duty machinery and equipment installations
The HUBBELL 30A Twist-Lock Plug L19-30P is a locking plug intended for use in industrial applications, rated for 30 amps and 277/480V AC in three-phase systems. It features a ribbed nylon housing with impact and chemical resistant properties, with a clear, funnel-shaped wire entry assists with wiring terminations. The integral dust shield includes an internal wiring chamber.
Key Features of the HUBBELL 30A Twist-Lock Plug L19-30P:
- Amperage/Voltage: Rated for 30 A and 277/480V AC electrical connections.
- Poles/Wires: Four-pole, four-wire configuration with screw terminal connections.
- Cable Range: Accepts cord diameters from 0.350" to 1.150"
- accommodates #16 AWG to #8 AWG stranded copper wire only.
- Housing Material: Ribbed nylon construction offers impact and chemical resistance
- black and white color scheme.
- Cord Grip Design: Cord grip is designed to reduce strain on terminations during operation.
- Environmental Suitability: For indoor dry locations
- IP20 rated against solid objects larger than 12mm.
- Operating Temperature Range: Maximum continuous temperature of 75°C
- minimum -40°C (without impact).
- NEMA Configuration: L19-30P twist-lock configuration
- compatible with matching receptacles.
- Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, UL Listed to UL498 standards.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 2.40
- Package Height: 4.20
- Package Weight: 0.35
