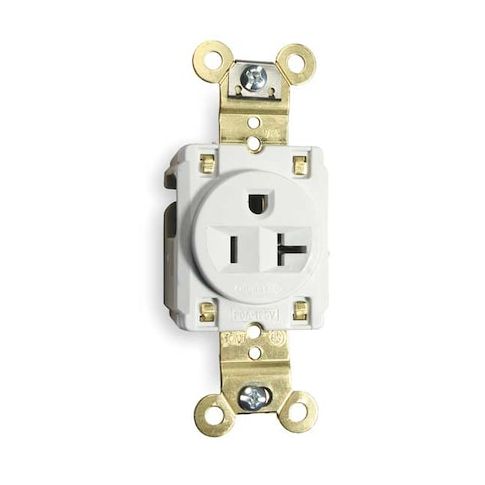

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:HBL5361W
Free Shipping
In Stock
The HUBBELL HBL5262 is a versatile, specification-grade receptacle designed for industrial environments. Its flush mount design and traditional face style make it ideal for use in high-traffic areas, while its screw terminals accommodate back and side wiring methods, allowing for easy installation. Rated for 20A and 125V AC, this receptacle is suitable for a variety of applications, including commercial and industrial settings. Its durable construction and certifications ensure reliable operation in demanding conditions, making it a reliable choice for use in harsh environments.
Top product features:
- Flush mount design allows for a sleek and compact installation.
- Accommodates back and side wiring methods with screw terminals for flexible installation options.
- Integral one-piece brass ground strap with grounding clip ensures reliable grounding and safety.
Top product applications:
- Industrial Environments
- Heavy-Duty Commercial Settings
- High-Traffic Areas
The HUBBELL HBL5262 is a single, flush mount receptacle rated for 20A and 125V AC, rated as specification grade. This NEMA 5-20R outlet features a traditional face style with finder groove design and is intended for use in industrial environments. It accommodates back and side wiring methods with screw terminals, accommodating #12 to #10 AWG copper conductors.
Key Features of the HUBBELL HBL5262 Receptacle:
- Amperage/Voltage: Rated for 20A, 125V AC
- NEMA Configuration: 5-20R, single outlet
- Mounting Type: Flush mount with included mounting hardware
- Wiring Method: Back and side wired screw terminals
- accommodates #12–#10 AWG copper wire
- Material Construction: Nylon face with reinforced PET base
- nickel-plated brass contacts
- Grounding: Integral one-piece brass ground strap
- includes grounding clip
- Operating Temperature Range: -40°C to +75°C (without impact)
- Dielectric Strength: Withstands minimum of 2,000V
- Circuit Interrupting Capability: Rated for operation at specified current
- Certifications & Standards: UL Listed (UL498), CSA C22.2 No.42 certified, Federal Specification W-C-596 compliant, NEMA WD-6 compliant
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.40
- Package Width: 5.00
- Package Height: 3.30
- Package Weight: 2.37
