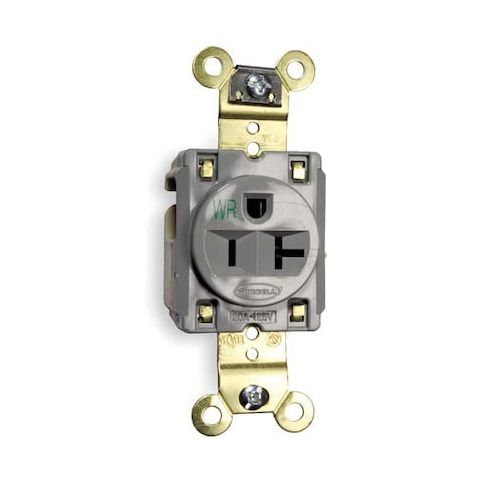

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:HBL5361GRYWR
Free Shipping
In Stock
The HUBBELL HBL5262 is a heavy-duty, flush-mount industrial receptacle designed for demanding environments. Rated for 20A and 125V AC, it features a traditional face with Finder Groove style and supports both back and side wiring methods. This NEMA 5-20R outlet is ideal for use in industrial settings, such as manufacturing facilities, warehouses, and construction sites, where reliability and durability are essential. Its weather-resistant design and wide operating temperature range (-40°C to +75°C) make it suitable for harsh environments, while its certifications and standards compliance ensure safe and reliable operation. Perfect for applications requiring heavy-duty power distribution.
Top product features:
- Flush mount design allows for a low-profile installation
- Accepts #12–#10 AWG copper wire for flexible conductor options
- Withstands minimum 2,000V dielectric strength for enhanced safety
Top product applications:
- Heavy duty industrial applications
- Demanding environments such as factories and warehouses
- Weather-resistant installations such as outdoor construction sites or marine environments
The HUBBELL HBL5262 is a single, flush mount industrial receptacle rated for 20A and 125V AC. Rated for use in heavy duty applications, it features a traditional face with Finder Groove style and is intended for installation in demanding environments. This NEMA 5-20R outlet supports both back and side wiring methods, accommodates #12 to #10 AWG copper conductors, and includes mounting hardware.
Key Features of the HUBBELL HBL5262 Receptacle:
- Amperage/Voltage: Rated for 20A at 125V AC
- NEMA Configuration: 5-20R single outlet
- Mounting Type: Flush mount with included hardware
- Wiring Method: Back or side wired screw terminals
- accepts #12–#10 AWG copper wire
- Material Construction: Nylon face with reinforced PET base
- nickel-plated brass contacts
- Weather Resistant: Rated for use in weather-resistant installations
- Operating Temperature Range: -40°C to +75°C (without impact)
- Certifications & Standards: UL Listed (UL498), CSA Certified (C22.2 No.42), Federal Specification W-C-600, NEMA WD-6 compliant
- Dielectric Strength & Flammability Rating: Withstands minimum 2,000V
- UL94 V-2 flammability rating
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 1.60
- Package Height: 4.10
- Package Weight: 0.21
