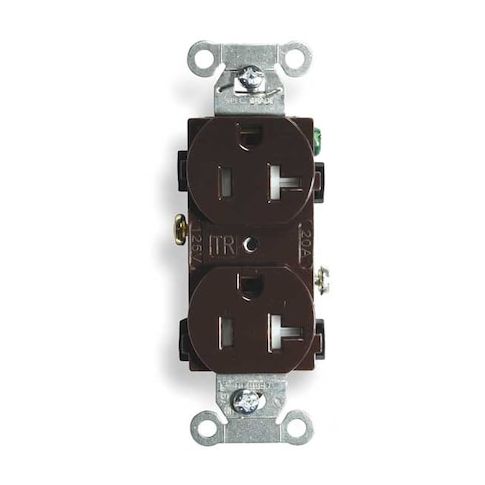

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:BR20TR
Free Shipping
In Stock
The HUBBELL 20A Duplex Receptacle is a reliable and versatile electrical outlet designed for indoor use. With a maximum current of 20 amps at 125 volts AC, it's ideal for powering a variety of devices in residential, commercial, and public spaces. The tamper-resistant shutters provide added security, while the flush mounting capability and grounding provisions ensure safe and easy installation. Suitable for both back and side wiring methods, this receptacle is a great choice for new construction, renovations, and upgrades in areas with high foot traffic, such as offices, hotels, and restaurants.
Top product features:
- Supports both back and side wire connections (#12–#10 AWG copper)
- Features tamper-resistant shutters for added protection in public or accessible areas
- Includes grounding provisions and comes with necessary mounting hardware for flush mounting capability
Top product applications:
- Office Buildings
- Residential Homes
- Commercial Restaurants
The HUBBELL 20A Duplex Receptacle 125VAC 5-20R BN is an electrical outlet rated for indoor use. This duplex receptacle supports a maximum current of 20 amps at 125 volts AC, with a NEMA 5-20R configuration. It features tamper-resistant shutters for added protection in public or accessible areas and accommodates both back and side wiring methods using #12–#10 AWG copper conductors. The device includes grounding provisions, flush mounting capability, and comes with necessary mounting hardware.
Key Features of the HUBBELL 20A Duplex Receptacle:
- Amperage/Voltage: Rated for 20A, 125V AC operation
- NEMA Configuration: Standard NEMA 5-20R duplex outlet
- Tamper Resistant: Built-in shutter mechanism
- Material Construction: Nylon housing with galvanized steel mounting strap
- brass power contacts
- Wiring Method: Supports both back and side wire connections (#12–#10 AWG copper)
- Mounting Type: Flush mount design
- includes grounding staple and hardware
- Certification & Standards: UL Listed (UL498), CSA Certified C22.2 No.42, Federal Specification WC596G, NEMA WD-6 compliant
- Operating Temperature Range: -40°F to +167°F (-40°C to +75°C)
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.50
- Package Width: 4.50
- Package Height: 2.50
- Package Weight: 1.90
