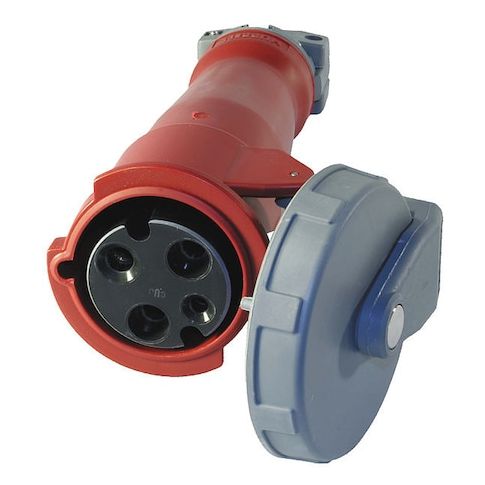

Watertight Pin & Sleeve Connector, 60 A, 480V AC, Single Phase, 2 Pole, IEC Grounding, Red, NEMA 4X MPN:HBL360C7W
Free Shipping
In Stock
The HUBBELL IEC Pin and Sleeve Connector is a rugged, watertight electrical connector designed for industrial applications, rated for 60A and 480V AC single-phase use. Suitable for high-capacity power distribution systems in environments requiring moisture resistance and durability, this connector features a Zytel 801 nylon body and insulated non-metallic housing. Ideal for use in harsh conditions, it's perfect for construction, manufacturing, and oil and gas industries, providing reliable connections in extreme temperatures (-40°C to +75°C). With its self-closing gasketed cover and shrouded contacts, this connector ensures safe and secure connections, meeting CSA and UL standards.
Top product features:
- Watertight construction protects against water ingress, meeting IP68/IP69K standards and NEMA 4X enclosure requirements.
- Accepts cable diameters from 0.5 in to 1.45 in, supporting wire sizes from 8 AWG to 2 AWG using screw terminals.
- Operates within a temperature range of -40°C to +75°C, ensuring reliable performance in various environmental conditions.
Top product applications:
- Industrial Power Distribution Systems
- Heavy Duty Equipment Manufacturing
- High-Temperature Industrial Environments
The HUBBELL IEC Pin and Sleeve Connector is a watertight electrical connector intended for industrial applications, rated for 60A and 480V AC single-phase applications. This connector features a rugged, impact-resistant Zytel 801 nylon body with an insulated non-metallic housing and is compatible with the HBL Heavy Duty series. It is suitable for use in environments requiring moisture resistance and durability.
Key Features of the HUBBELL IEC Pin and Sleeve Connector:
- Current/Voltage Rating: Rated for 60 amps at 480V AC, compatible with high-capacity power distribution systems.
- Watertight Construction: IP68/IP69K rating with NEMA 4X enclosure
- rated to protect against water ingress per these standards.
- Material: Body constructed from Zytel 801 nylon
- housing made from PBT
- impact-resistant design.
- Cable Accommodation: Accepts cable diameters from 0.5 in to 1.45 in
- supports wire sizes from 8 AWG to 2 AWG using screw terminals.
- Temperature Range: Rated operational temperature range: -40°C to +75°C.
- Design Features: Includes color-coded housings for identification, self-closing gasketed cover, shrouded contacts, spring-loaded cap, and external cord grip for strain relief.
- Pole/Wire Configuration: Single phase (1 phase), two poles, three wires
- grounded per IEC style requirements.
- Standards Compliance: CSA Certified LR280C
- UL Classified to IEC 60309-1/2
- UL E146033 listed product.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.80
- Package Width: 5.60
- Package Height: 5.00
- Package Weight: 2.90
