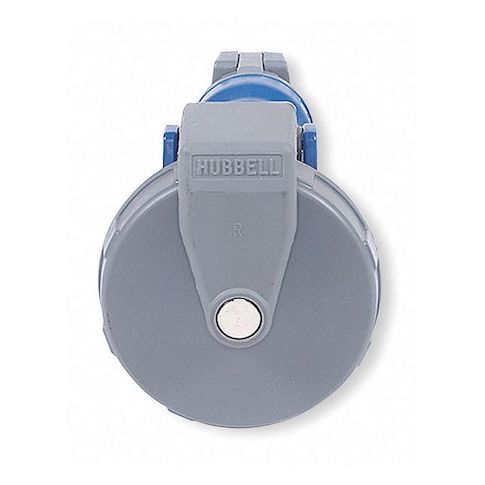

Watertight Pin & Sleeve Connector, 60 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, Blue, NEMA 4X MPN:HBL460C9W
Free Shipping
In Stock
The HUBBELL IEC Pin and Sleeve Connector is a rugged and reliable solution for high-capacity power connections in industrial settings. Rated for 60A and 250V AC in three-phase systems, this watertight connector ensures safe and efficient power transmission. Its Zytel 801 nylon body and insulated non-metallic housing make it suitable for harsh environments, while its cable accommodation range and screw terminal design facilitate easy wire installation. Ideal for applications such as manufacturing, construction, and oil and gas, this connector provides a durable and long-lasting connection, reducing downtime and increasing productivity.
Top product features:
- Watertight Construction: IP68/IP69K rated with NEMA Type 4X enclosure.
- Accommodates cable diameters from 0.5 to 1.45 inches and wire sizes from 8 AWG to 2 AWG using screw terminals.
- Supports three-phase systems with a current rating of 60 amps at 250V AC.
Top product applications:
- Industrial Power Distribution Systems
- Heavy-Duty Industrial Control Panels
- High-Capacity Motor Control Systems
The HUBBELL IEC Pin and Sleeve Connector is a watertight electrical connector intended for use in industrial settings where high-capacity power connections are specified. Rated for 60A and 250V AC in three-phase systems, this connector features a rugged Zytel 801 nylon body with an insulated non-metallic housing. It supports cable diameters from 0.5 to 1.45 inches and accommodates wire sizes from 8 AWG to 2 AWG using screw terminals.
Key Features of the HUBBELL IEC Pin and Sleeve Connector:
- Current/Voltage Rating: Rated for 60 amps at 250V AC
- refer to application requirements to determine suitability.
- Watertight Construction: IP68/IP69K rated with NEMA Type 4X enclosure.
- Material: Body constructed from Zytel 801 nylon
- housing made of PBT with V-0 flammability rating per UL94.
- Cable Accommodation: Accepts cables between 0.5 in and 1.45 in diameter
- supports wire sizes from #8 AWG up to #2 AWG.
- Connection Orientation: Straight connection design with shrouded contacts for added protection.
- Grounding Style: IEC grounding configuration
- grounded device with four wires (three poles).
- Cord Grip & Cover: External cord grip is included for strain relief
- spring-loaded self-closing gasketed cover is present on the device.
- Color Coding & Identification: Blue color-coded housing as part of the HBL Heavy Duty series.
- Temperature Range: Operates within -40°C to +75°C temperature range.
- Standards Compliance: CSA Certified LR280C, UL Classified to IEC standards (60309-1/60309-2), UL E146033 listed product.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.80
- Package Width: 5.60
- Package Height: 4.90
- Package Weight: 3.00
